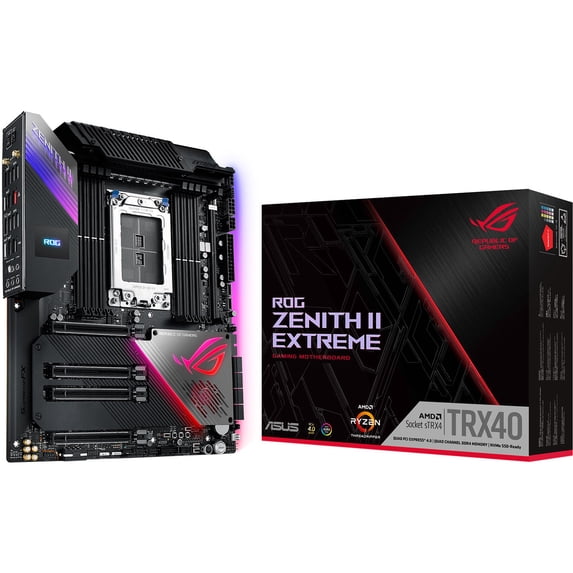

Asus ROG 90MB12C0-M0AAY0 Zenith II Extreme Desktop Motherboard

Name: Asus ROG 90MB12C0-M0AAY0 Zenith II Extreme Desktop Motherboard
Brand: ASUS
SKU: 995720210
Price: 1011.38 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

|2 ratings

Key item features

Performance High-end desktop processors have greater power requirements due to the abundance of cores and memory channels. The latest Threadripper evolutions are particularly demanding, so intelligent VRM design and quality components are vital ? especially for overclocked CPUs that live closer to the edge of stability. Accompanied with our critically-acclaimed UEFI and AI Suite tuning utility, ROG Zenith II Extreme offers an accessible range of manual tweaking tools, plus a highly-configurable auto-tuner that maximizes system control and performance with no expert knowledge required.
Teamed Power Architecture Modern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
Storage ROG Zenith II Extreme supports up to five M.2 drives for maxed-out storage. Two ride the ROG DIMM.2 module, next to the memory slots, and support drives up to 110m. There are another two slots under the aluminum heatsink cover, with a fifth one at the rear of the board. Every one of these slots is wired to support full PCIe 4.0 bandwidth, so they're compatible with the very latest NVMe SSDs ? laying the foundation for the ultrafast transfer speeds needed to support machine-learning algorithms and drive higher-resolution game textures.
AMD StoreMI AMD StoreMI is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
Audio Sound is an integral part of gaming immersion. ROG Zenith II Extreme's onboard audio joins the latest SupremeFX S1220 codec with a high-end ESS Sabre DAC. Power users in particular pipe content through multiple devices, so our Sonic Studio III software has an intuitive management interface that lets you route sound from applications to specific outputs. The board even supports DTS® Sound Unbound technology, to create three-dimensional audio soundscapes that draw you further into virtual worlds.
SupremeFX ROG is renowned for superior onboard audio, and ROG Zenith II Extreme is no exception. The front-panel headphone output features a SABRE9018Q2C integrated DAC/amp capable of reaching -108dB THD+N to provide playback that conveys all the subtlety and nuances of even the highest-quality audio track. The improved resolution derived from the ESS Hyperstream? DAC architecture expands the soundstage to give a better sense of positioning. Beyond resolution, the 120dB DNR provides an extremely low noise-floor, further accentuating dynamics and punch. And, when you want to shift priority to musicality, our Sonic Studio software provides an array of EQ options, allowing the sound signature to be tweaked to suit your cans.
Personalize In addition to extraordinary performance, ROG Zenith II Extreme provides extensive styling and customization options to let you build a system that truly stands apart.
CONNECTIVITY Having the bandwidth to fuel multiple PCIe SSDs and graphics cards is part of the allure of high-end desktop platforms. ROG Zenith II Extreme fully exploits Threadripper's 64-lane capability, empowering you to connect up to 20 PCIe devices simultaneously. Every single PCIe x16 and M.2 is wired with PCIe 4.0, and the board also accelerates both wired and wireless networking ? with both Aquantia 10 Gbps Ethernet and the latest Wi-Fi 6 (802.11ax) onboard.
CPU Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen? Threadripper? Series Desktop Processors * Refer to www.asus.com for CPU support list
Chipset AMD TRX40
Memory AMD Ryzen? Threadripper? Processors 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support Supports NVIDIA® 3-Way SLI® Technology Supports AMD 3-Way CrossFireX? Technology
Expansion Slots 3rd Gen AMD Ryzen? Threadripper? Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
Storage 3rd Gen AMD Ryzen? Threadripper? Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 3rd Gen AMD Ryzen? Threadripper? Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s),
LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Aquantia AQC-107 10G Anti-surge LANGuard ROG GameFirst V Technology
Wireless Data Network Intel® Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth Bluetooth® 5.0
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output 108 dB SNR recording input - ESS® ESS9018Q2C Audio Feature : - SupremeFX Shielding? Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III
USB Ports 3rd Gen AMD Ryzen? Threadripper? Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s) AMD TRX40 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C) AMD TRX40 chipset : 3 x USB 2.0 port(s) ASMedia® USB 3.2 Gen 1 controller : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) ASMedia® USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)
ROG Exclusive Features Clear CMOS button ROG CPU-Z ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+ : - Infineon TDA21472 Power Stage - 10K Black Metallic Capacitors ROG Extreme OC kit : - OptiMem III - ReTry button - Safe Boot button - Start button - Slow Mode - LN2 Mode - FlexKey Button ProbeIt UEFI BIOS features : - ROG SSD Secure Erase - Graphic Card Information Preview USB BIOS FlashBack? ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - GameFirst V - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover
Back I/O Ports 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack? Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
Internal I/O Ports 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 2 x W_PUMP+ connector 1 x WB_SENSOR 1 x 6-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x Start button 1 x FlexKey button 1 x FS Mode switch 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability WOL , PXE
Operating System Windows® 10 64-bit
Form Factor Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
