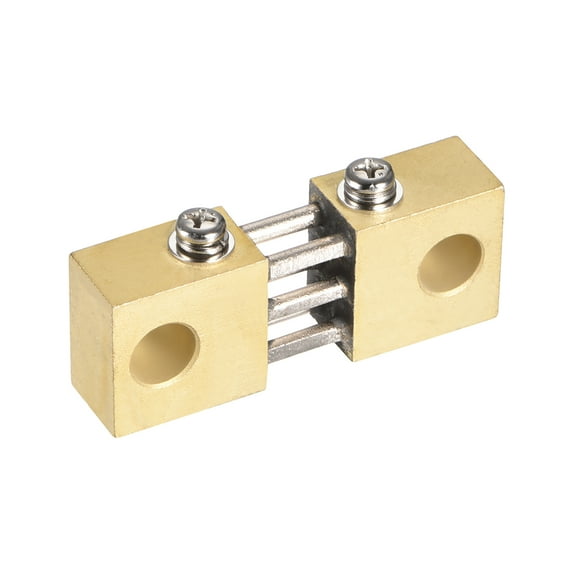

600A 75mV Shunt Resistor for DC Current Ammeter Analog Panel Meter FL-19

• 75mV Voltage Drop and 600A Rated(Maximum) Current, 75mV satisfies most of the DC ammeter.
• Made of Copper with Anti-Rust plated, ensures the performance of stability and durability.
• External type. Two holes on both sides for a solid placing, and nuts for the circuit connection.
• Connection. A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.
• 0.5% Accuracy and 120% Overload Rated Current(For 2 hours)

Rated Current: 600A

Voltage Drop: 75mV

Materials: Copper

Overload Rated Current: 120%(2 Hours)

Accuracy: 0.5%

Working Temp: -40C to 60C(-40F to 140F)

Type: FL-19 External

Length: 65mm

Width: 25mm

Height: 15mm

Weight: 140g

Package Content

1 pcs x 600A/75mV Shunt
