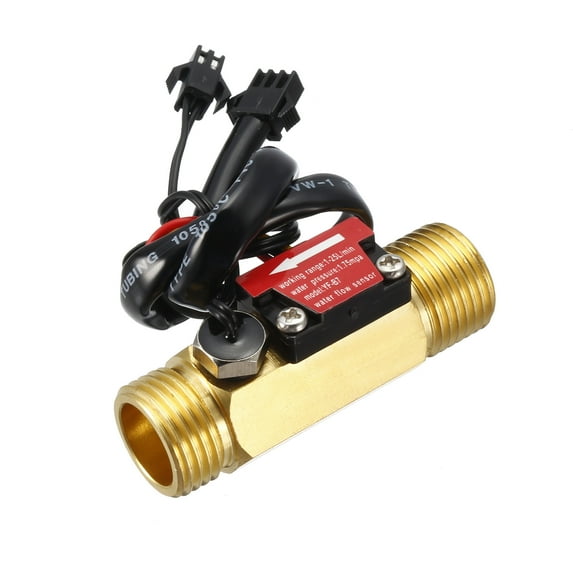

Uxcell G1/2 Hall Effect Liquid Water Flow Sensor Switch Meter Counter DC5V 1-25L/min YF-B7

1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 male threaded ports each end. Equipped with filter water entry.
2.Mainly used for water heater, boiler, coffee machines, hot card machines, steam equipment, water system, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.
3. Wire connection: Red for positive, black for negative, yellow for pulse signal. Another for temperature signal(3950K 50K).

Specifications:
Product Name: Water Flow Sensor
Material: Brass(Shell)
Size: 66mm x 24mm x 29mm / 2.6" x 0.94" x 1.14"(L*W*H)
Cable Length: 300mm / 11.81"; 150mm / 5.91"
Liquid Temperature: Not More Than 60C
Rated Voltage: DC 5V
Max Current: 10mA(DC 5V)
Maximum water pressure: 1.75MPa
Flow range: 1-25L/min
Connector: Male SM-3P; SM-2P
External Thread Diameter: G1/2
Ingress Protection Rating: IP65
Color: Brass Tone
Net Weight: 115g

Package Included:
1 x Water Flow Sensors

Note:

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
