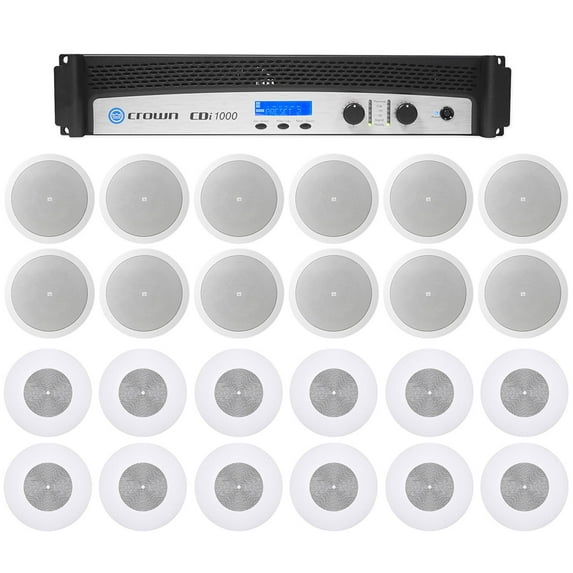

Crown CDi1000 500w 70V Commercial Amplifier:12 Main+12 Background Music Speakers

• (1) Crown CDi1000 2-Channel, 500w 2,4,8-ohm 70V/140V Commercial Power Amplifier Amp
• (6) Pairs of JBL CONTROL 16C/T 6.5"" 30w 70v Commercial Ceiling Speakers For Restaurant/Bar
• (12) JBL CSS8008 8"" Commercial 70V/100V 5w Ceiling Speaker 4 Restaurant/Bar/Cafe

• Crown CDi1000 2-Channel, 500w 2,4,8-ohm 70V/140V Commercial Power Amplifier Amp
• Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.
• Switch-mode universal power supply.
• Intuitive front-panel LCD screen for quick, easy configuration.
• Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting.
• Up to 20 user defined DSP presets are available.

• (2) JBL CONTROL 16C/T 6.5"" 30 Watt 70v Commercial Ceiling Speakers For Restaurant/Bar
• Components:
  • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
  • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
  • 50 Watts at 8O nominal setting
  • 30W multi-tap at 70V/100V
• 62 Hz – 20 kHz bandwidth with wide 110° coverage
• High 91 dB sensitivity for high maximum SPL
• Color: White

Specifications:

• Frequency Range (-10 dB): 62 Hz – 20 kHz
• Power Capacity (at low-Z)
  • 100 Watts Continuous Program Power
  • 50 Watts Continuous Pink Noise
• Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
• Frequency Response (±3 dB): 96 Hz – 15 kHz
• Nominal Sensitivity: 91 dB
• Nominal Coverage Angle: 110° conical coverage
• Directivity Factor (Q): 7.8
• Directivity Index (DI): 8.2 dB
• Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak
• Nominal Impedance: 8 ohms (in direct/bypass 8O setting)
• Crossover Network
  • 12 dB/oct (2nd order) low-pass to LF driver,
  • 12 dB/oct (2nd order) high-pass to HF driver
• LF Driver: 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
• HF Driver: 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
• Input Connector: Removable locking 4-pin connector with screw-down terminals.
  Max wire size 12 AWG (2.5 mm2)
• Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
• Optional Accessories
  • MTC-26NC new construction bracket
  • MTC-26MR mud-ring construction bracket
  • MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers)
  • MTC-48TR tile r
