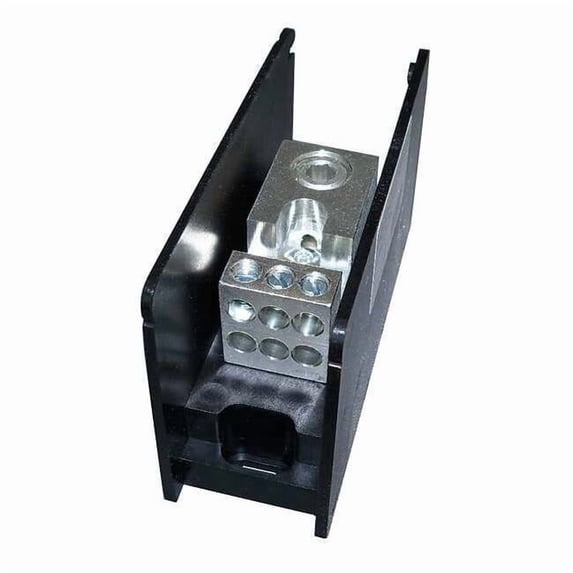

Power Distribution Block, Open, 1 Pole, 310 A Copper, 1,000 V AC/DC, Screw

(No ratings yet)

Key item features

Body/Insulating Material:GFPC
Features:Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available
For Conductor Material:Aluminum
For Line Aluminum Wire Size - Maximum:350 kcmil
For Line Aluminum Wire Size - Minimum:6 AWG
For Line Copper Wire Size - Maximum:350 kcmil
For Line Copper Wire Size - Minimum:6 AWG
For Load Aluminum Wire Size - Maximum:2 AWG
For Load Aluminum Wire Size - Minimum:14 AWG
For Load Copper Wire Size - Maximum:2 AWG
For Load Copper Wire Size - Minimum:14 AWG
Power Distribution Block Design:Open
Primary Connections/Pole:1
Primary Wire Range (AWG):6 AWG to 350 MCM
Primary Wire Range:6 AWG to 350 kcmil
Product Height:3.25 in
Product Length:3.08 in
Product Width:1.85 in
Rated voltage AC UL:1000 V
Rated voltage DC UL:1000 V
RoHS Compliant:Yes
Standards:CSA Class 6228-01, UL 1953
Terminal Material:Aluminum
UL 94 Flammability Rating:V-0
Width:1.85 in
Wire Range (Primary):350-#6
Wire Range (Secondary):#2-#14

Specs

Volts
1000 V
Brand
Mersen
Dimensions
3.25 x 1.85 x 3.00 in
Color
Multi
Count per pack
1
Weight
3.24 lb

Current price is $80.89

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Fri, Apr 10

Sold and shipped by SIM Supply Inc

4.334614099565653 stars out of 5, based on 5986 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $86.00

About this item

Product details

Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.25 in, Overall Length 3.08 in, Overall Width 1.85 in

Body/Insulating Material:GFPC
Features:Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available
For Conductor Material:Aluminum
For Line Aluminum Wire Size - Maximum:350 kcmil
For Line Aluminum Wire Size - Minimum:6 AWG
For Line Copper Wire Size - Maximum:350 kcmil
For Line Copper Wire Size - Minimum:6 AWG
For Load Aluminum Wire Size - Maximum:2 AWG
For Load Aluminum Wire Size - Minimum:14 AWG
For Load Copper Wire Size - Maximum:2 AWG
For Load Copper Wire Size - Minimum:14 AWG
Power Distribution Block Design:Open
Primary Connections/Pole:1
Primary Wire Range (AWG):6 AWG to 350 MCM
Primary Wire Range:6 AWG to 350 kcmil
Product Height:3.25 in
Product Length:3.08 in
Product Width:1.85 in
Rated voltage AC UL:1000 V
Rated voltage DC UL:1000 V
RoHS Compliant:Yes
Standards:CSA Class 6228-01, UL 1953
Terminal Material:Aluminum
UL 94 Flammability Rating:V-0
Width:1.85 in
Wire Range (Primary):350-#6
Wire Range (Secondary):#2-#14

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Volts

1000 V

Brand

Mersen

Dimensions

3.25 x 1.85 x 3.00 in

Color

Multi
