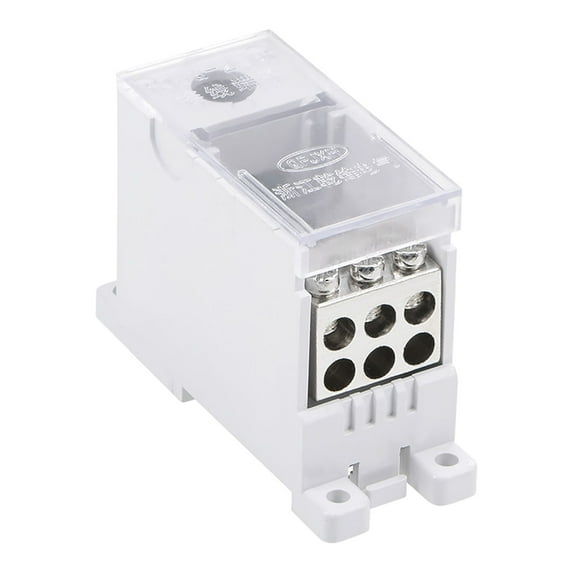

1 Input 6 Output DIN Rail Terminal Block Connectors, Distribution Block

-A Terminal Block is where the electrical supply is distributed from within the building.
-The main distribution board is usually in the house where the main electrical cable enters and smaller boards, together with contact breakers and possibly earth leakage units are at other points, such as swimming pool pumps, gate motors and outbuildings.
-It is finished in insulated PC plastic and has a tough clear plastic protective cover.
-This distribution block helps to eliminate the need for several separate wires running from the main power -source and gives you a more clean and professional installation.

Features:
Type: 1 Ways In 6 Ways Out
Insulation Voltage: 690V
Working Voltage: 380V
Max. Input Current: 250A
Max. Output Current: 40A
Fit Input Cable Section: 6-50mm2
Fit Output Cable Section: 1.5-16mm2
Fit Din Rail Width: 35mm

Dimension:
Size: 78 x 30 x 53mm / 3.07" x 1.18" x 2.09" (L*W*H)
Fix Hole Size: 4mm / 0.16" (D); 7 x 4mm / 0.28" x 0.16" (L*W)


Package Content:
1 x Din Rail Terminal Block
