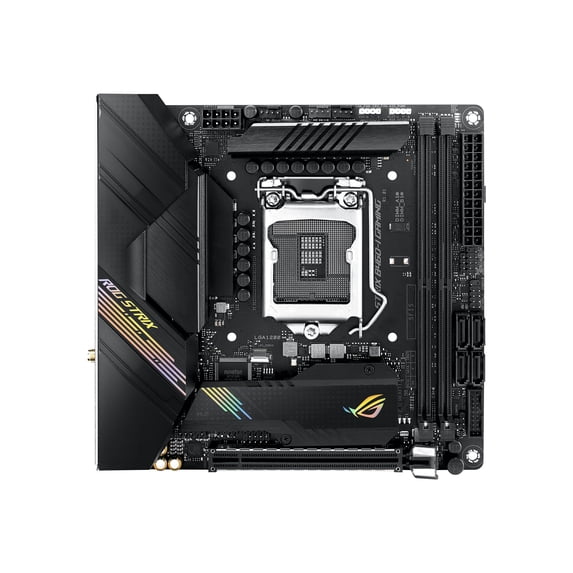

Asus ROG Strix B460-I GAMING Desktop Motherboard, Intel Chipset, Socket LGA-1200, Intel Optane Memory Ready, Mini ITX

Name: Asus ROG Strix B460-I GAMING Desktop Motherboard, Intel Chipset, Socket LGA-1200, Intel Optane Memory Ready, Mini ITX
Brand: ASUS
SKU: 869241463
Availability: OutOfStock
Rating: 5 (1 reviews)

|1 rating

Key item features

Intel® LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel® Core™ processors
Robust Power Solution: 6+2+1 Dr. MOS power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance
Optimized Thermal Design: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
High-performance Gaming Networking: On-board Intel® WiFi 6 AX201 (802.11 ax), Intel® 1Gb Ethernet with ASUS LANGuard
Play your own style: The cyberpunk-inspired aesthetics, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable header
CPU Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors Supports Intel® 14 nm CPU Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H470 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/2666/2400/2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics 1 x DisplayPort 1.2 1 x HDMITM 1.4b *Graphics specifications may vary between CPU types.
Expansion Slots Intel® 10th Gen Processors 1x PCIe 3.0 x16 slots
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® B460 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4mode)* 4 x SATA 6Gb/s ports *Supports NVMe RAID configurations via M.2 storages Intel® Optane™ Memory Ready
Ethernet 1 x Intel® I219V 1Gb Ethernet ASUS LANGuard
Wireless & Bluetooth Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
USB Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 6 x USB 3.2 Gen 1 port(s) (6 x Type-A) 1 x USB 2.0 port(s) (1 x audio USB Type-C®) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback* Audio Features - SupremeFX Shielding Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio Shielding - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 6 x USB 3.2 Gen 1 port(s) (6 x Type-A) 1 x USB 2.0 port(s) (1 x audio USB Type-C®) 1 x DisplayPort 1 x HDMITM port 1 x ASUS Wi-Fi Module 1 x Intel® I219-V 1Gb Ethernet port 5 x Audio jacks
Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports Miscellaneous 1 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector
Software Features ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3: - Performance And Power Saving Utility TPU EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables 1 x Addressable RGB extension cable 1 x RGB extension cable 1 x ROG audio USB Type-C® cable 2 x SATA 6Gb/s cables Miscellaneous 1 x Cable ties pack 1 x M.2 Rubber Package(s) 2 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x ASUS 2x2 dual band Wi-Fi moving antennas Installation Media 1 x Support DVD Documentation 1 x User manual
Operating System Windows® 10 - 64 bit
Form Factor Mini-ITX Form Factor
