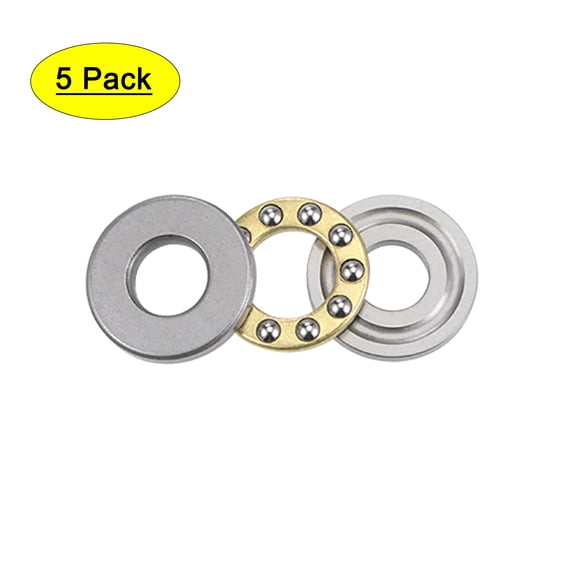

F8-19M Miniature Thrust Ball Bearings 8mmx19mmx7mm Chrome Steel with Washers 5 Pcs

Description:

• The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.
• Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
• They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
• Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.

Specification:

• Model: F8-19M
• Shaft/Housing Washer Material: Chromium Steel (GCr15)
• Bearing Ball Meterial: Chromium Steel (GCr15)
• Cage Material: Stamping Steel
• Inner Diameter (d): 8mm
• Outside Diameter (OD): 19mm
• Thickness (B): 7mm
• Dynamic Load Rating (Cr): 3452N
• Static Load Rating (Cor): 3000N
• Limiting Speed (Grease): 3000rpm
• Limiting Speed (Oil): 5000rpm
• Accuracy Class: P0 (ABEC-1)
• Noise Level: Z1
• Number of Pack: 5Pcs
