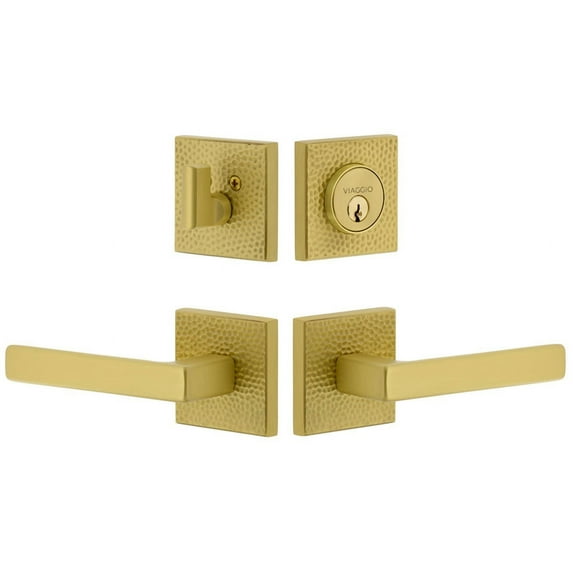

Viaggio Qadmhmlus_Combo_234_Rh Motivo Right Handed Solid Brass Single Cylinder Keyed Entry

Viaggio hardware is made in Europe and hand-assembled in the US. Each piece is created from solid-forged brass, and then precision polished for the sleekest looks. All Viaggio Hardware comes standard with luxury concealed screw mechanism for a clean installation, leaving no visible fasteners.

The precise lines of the Quadrato Entry Set provide a crisp display of modern simplicity. With meticulous corners and mathematical symmetry, this square entry set is a versatile choice. Add the Circolo brass knob, with its pure cylindrical shape, to impart a simple yet elegant finishing touch. All Viaggio products are made with longevity and durability in mind so they can be enjoyed for generations to come.

Combo Pack: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key in the deadbolt and can be locked and unlocked from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.

Features:

• Entry sets are only keyed at the deadbolt
Made from solid forged brass and precision polished for superior quality
• Features concealed screw mechanism (CSM) for clean, uncomplicated style
• Easy to install and works with modern pre-drilled doors
• 1 inch hardened steel bolt for security
• Schlage C keyway
• Manufactured in Europe, assembled in the USA
• Lifetime Mechanical Warranty
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Includes:

• Two (2) knob and plate assemblies – one (1) preassembled
• One (1) strikeplate
• One (1) faceplate
• One (1) latch
• One (1) plastic anti-rotation block
• One (1) CSM subplate
• One (1) CSM spindle
• One (1) brass bushing
• One (1) plastic bushing tool
• One (1) nylon washer
• One (1) hex wrench
• One (1) cylinder escutcheon
• One (1) thumb turn escutcheon
• One (1) cylinder
• One (1) 6.5mm Spin Ring
• One (1) DB strikeplate with One (1) DB faceplate
• One (1) DB latch
• Mounting hardware

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Right
• Handle Length: 5-1/8"
• Handle Projection: 1-5/8"
• Trim Width: 2-1/2"
• Trim Height: 2-1/2"
• Product Weight: 3 lbs
• Latch Faceplate: Square Corner
