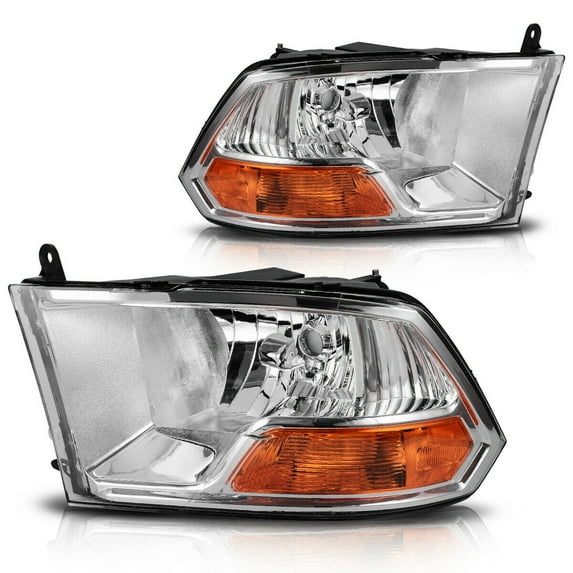

Geelife For Dodge Ram Crystal Clear Headlights Head Lamps Set

For 2009-2012 Dodge Ram 1500 2500 3500 Crystal Clear Headlights Head Lamps Set

Item Description:

APPLICATION:
2009-2012 Dodge Ram 1500
2010-2012 Dodge Ram 2500 3500

FEATURE:
Other Part Number: CH2502217,CH2503217
Interchange Part Number: 2221-0090L,2221-0090R

SAE/DOT approved for street legal
Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets OEM Requirements
High & Low Beam Bulbs:H13 (bulbs are not included)

PACKAGE INCLUDES:
1 Pair LH (Driver Side) + RH (Passenger Side) Headlights

INSTALLATION GUIDE:
Before you begin to adjust the light, make sure check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.
1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.
2. Adjust the headlights individually. The headlights should be adjusted 1 at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.
3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.
4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.
5. Test your results.
