Hero image 0 of 2PCS Digital Load Cell Weight Sensor 10KG Pressure Load Cell Weighting Sensor for Electronic Kitchen Scale, 0 of 7

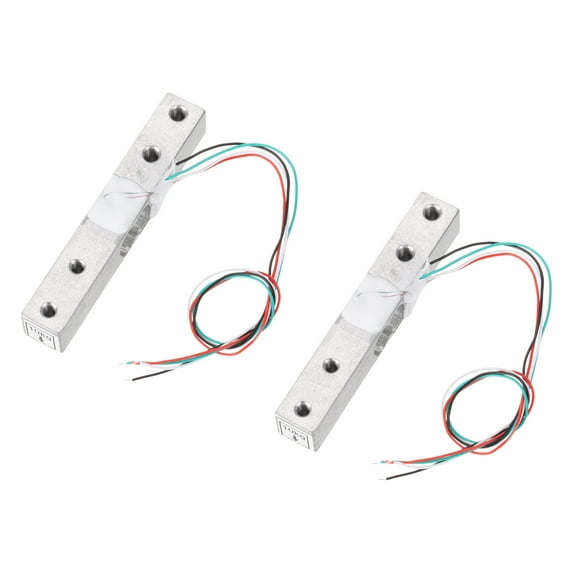

2PCS Digital Load Cell Weight Sensor 10KG Pressure Load Cell Weighting Sensor for Electronic Kitchen Scale
(No ratings yet)
Key item features
Load Cell maximum measures force: 10kg (22 lb)
Rated Output Sensitivity: 1.0+/-0.1 mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05%F.S
Repeatability: 0.05%F.S
Creep(5Min):0.05%F.S/3min
Output impedance:1000±50 ohm
Accuracy: 1g
Size: 80x12.7x12.7mm/3.15 x 0.5 x 0.5 inch
Connection:Red to E+ / Black to E- / Green to A+ / White to A-
Package contains: 2pcs x load cell weight sensor.
Specs
- Manufacturer part numberS24062300WM0085
- BrandUxcell
- Has written warrantyNo
Current price is USD$12.34
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between Jun 1 - Jun 5
|
Sold and shipped by Tasharina Corp
4.074385855108747 stars out of 5, based on 31959 seller reviews(4.1)31959 seller reviews
Free 30-day returns
About this item
Product details
What is this?
Digital load cell weight sensor is made of aluminum alloy with parallel beam structure, it is suitable for electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing equipment.
Are there any advantages of the product?
The load cell converts applied force into an electrical signal, applying a 5-10V drive voltage, the force is directly output as a voltage change signal. This electronic sensor is good for projects that require precise weight measurement, such as making a custom kitchen scale or other portable weighing device.
How to use it?
Electronic sensor contains 4 leads for easy use,The weighing sensor needs to be connected to the HX711 module, red to E+, black to E-, green to A+, and white to A-
What should I notice?
One end of the sensor is fixed through the screw hole, and the other end is kept suspended. Apply gravity in the direction indicated by the label. Pay special attention not to press the white rubber part directly to avoid damaging the sensor.
Digital load cell weight sensor is made of aluminum alloy with parallel beam structure, it is suitable for electronic kitchen scales, small appliance force measurement, and intelligent electronic weighing equipment.
Are there any advantages of the product?
The load cell converts applied force into an electrical signal, applying a 5-10V drive voltage, the force is directly output as a voltage change signal. This electronic sensor is good for projects that require precise weight measurement, such as making a custom kitchen scale or other portable weighing device.
How to use it?
Electronic sensor contains 4 leads for easy use,The weighing sensor needs to be connected to the HX711 module, red to E+, black to E-, green to A+, and white to A-
What should I notice?
One end of the sensor is fixed through the screw hole, and the other end is kept suspended. Apply gravity in the direction indicated by the label. Pay special attention not to press the white rubber part directly to avoid damaging the sensor.
Load Cell maximum measures force: 10kg (22 lb)
Rated Output Sensitivity: 1.0+/-0.1 mV/V
Zero output: ±0.1mV/V
Nonlinear: 0.05%F.S
Repeatability: 0.05%F.S
Creep(5Min):0.05%F.S/3min
Output impedance:1000±50 ohm
Accuracy: 1g
Size: 80x12.7x12.7mm/3.15 x 0.5 x 0.5 inch
Connection:Red to E+ / Black to E- / Green to A+ / White to A-
Package contains: 2pcs x load cell weight sensor.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Manufacturer part number
S24062300WM0085
Brand
Uxcell
Has written warranty
No
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
