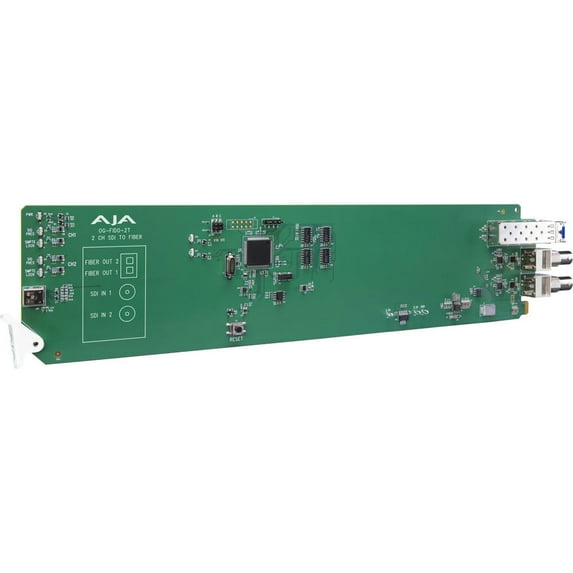

AJA OG-FIDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter, DashBoard Support

(No ratings yet)

Key item features

CRYSTAL-CLEAR TRANSMISSION - Experience pristine video quality with format-agnostic support from 150 Mbps to 3 Gbps ensuring your content is delivered flawlessly.
VERSATILE CONNECTIVITY - Features 2-Channel independent 3G-SDI BNC Inputs (SMPTE-259/292/424) for seamless integration with your existing SDI infrastructure.
EXTENDED REACH - Transmit your video signals over long distances with 2-Channel independent Single Mode LC Fiber Outputs (SMPTE-297) up to 1310 nm wavelength.
AUTOMATIC SIGNAL MANAGEMENT - Benefit from auto-selected reclocking at 270 Mbps 1.483/1.485 Gbps and 2.966/2.970 Gbps simplifying your workflow.
INTUITIVE CONTROL - Manage and monitor your video signals effortlessly using openGear DashBoard network control software compatible with Windows macOS and Linux.
ROBUST AND RELIABLE - Designed to operate within a safe temperature range of 0 to 40 C ensuring consistent performance in demanding environments.
270 Mbps 1.483 Gbps 1.485 Gbps 2.966 Gbps 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked
Wavelength: 1310 nm

Specs

Brand
AJA Video
Compatibility
Windows, macOS, Linux
Connection
BNC, LC
Color
Black & White
Compatible models
OG-FiDO-2T
Works with
Computers

Current price is $845.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Tue, May 5

Sold and shipped by Adorama

4.342947037231253 stars out of 5, based on 1907 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns - in store or online

About this item

Product details

For professionals seeking a high-performance, openGear compatible, 2-channel 3G-SDI to Fiber converter, the OG-FiDO-2T is an exceptional choice. This state-of-the-art device allows 3G-SDI signals to be extended up to an impressive 10 km (32,808 ft) over standard single mode fiber optic cable. The OG-FiDO-2T features two 3G-SDI inputs that operate independently, accommodating different 3G-SDI rates on each channel. This flexibility makes it an ideal solution for various broadcasting and video production needs. Designed for seamless integration with high-density openGear's 2RU frames, including AJA's OG-X-FR frame, this device also supports the new DashBoard Software on Windows, macOS, and Linux. This software provides remote control and monitoring of the openGear architecture, offering industry-standard configuration, monitoring, and control options over a PC or local network. The 3G-SDI inputs of the OG-FiDO-2T are re-clocked with top-tier input jitter tolerance, supporting 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb. The fiber connector is securely attached to the main card, enhancing reliability and offering cost savings. As part of the openGear standard, the OG-FiDO-2T ensures compatibility with other certified openGear products, making it a future-proof choice for your rackframe product needs. The device also offers flexible I/O options with a modular rear panel that allows custom I/O connections per card. For added security, an optional redundant power supply can provide a secondary power source in case of a primary power failure. Lastly, a standard Ethernet connection enables the frame to be accessed via the Dashboard application for overall frame communication. An optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards. In summary, the OG-FiDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter with DashBoard Support is a robust, versatile, and reliable solution for extending 3G-SDI signals over long distances.

CRYSTAL-CLEAR TRANSMISSION - Experience pristine video quality with format-agnostic support from 150 Mbps to 3 Gbps ensuring your content is delivered flawlessly.
VERSATILE CONNECTIVITY - Features 2-Channel independent 3G-SDI BNC Inputs (SMPTE-259/292/424) for seamless integration with your existing SDI infrastructure.
EXTENDED REACH - Transmit your video signals over long distances with 2-Channel independent Single Mode LC Fiber Outputs (SMPTE-297) up to 1310 nm wavelength.
AUTOMATIC SIGNAL MANAGEMENT - Benefit from auto-selected reclocking at 270 Mbps 1.483/1.485 Gbps and 2.966/2.970 Gbps simplifying your workflow.
INTUITIVE CONTROL - Manage and monitor your video signals effortlessly using openGear DashBoard network control software compatible with Windows macOS and Linux.
ROBUST AND RELIABLE - Designed to operate within a safe temperature range of 0 to 40 C ensuring consistent performance in demanding environments.
270 Mbps 1.483 Gbps 1.485 Gbps 2.966 Gbps 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked
Wavelength: 1310 nm

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

AJA Video

Compatibility

Windows, macOS, Linux

Connection

BNC, LC

Color

Black & White

Warranty

Warranty information

5 Years
