DAE P304-200D Kit Multi-function Smart Submeter 3P4W(3 hot wire,1 neutral), 200A, 120/208v, 3 Split CTs, RS485, Demand

(No ratings yet)
DAE P304-200D Kit Multi-function Smart Submeter 3P4W(3 hot wire,1 neutral), 200A, 120/208v, 3 Split CTs, RS485, DemandDAE P304 200D Kit Multi function Smart Submeter 3P4W 3 hot wire 1 neutral 200A 120 208v 3 Split CTs RS485 DemandDAE P254 200D Kit UL listed kWh Demand Submeter 3 phase 4 wire 3 hot wires 1 neutral 200A 120 208v 3 Split Cores CTs RS485DAE P306 200D S Kit 200A 277 480v Multi function Smart Submeter Polaris 3000 3P4W 3 hot wire 1 neutral 3 CTs RS485 DemandDAE P304 200D S Kit Multi function Smart Submeter Polaris 3000 3P4W 3 hot wire 1 neutral 200A 120 208v 3 CTs RS485 DemandDAE P256 400D Kit 400A RS485 Demand 277 480v UL Listed kWh Smart Submeter Polaris 2500 3P4W 3 hot wire 3 Split Cores CTs inner dia 1 38 inchDAE P252 400D Kit Demand 400A 480V UL RS485 kWh Smart Submeter 3P3W 3 hot wire no Neutral 2 Split CTs inner dia 1 38DAE P153 200D Kit UL kWh Smart Submeter 1P3W 2 hot wire 1 neutral 200A 120 240v 2 Split CTs RS485 DemandDAE P103 200D S Kit UL Demand kWh Submeter 1P3W 2 hot wire 1 neutral 200A 120 240V 2 CTs inner dia 1 02DAE P256 600D Kit 600A RS485 Demand 277 480v UL kWh Smart Submeter Polaris 2500 3P4W 3 hot wire 1 neutral 3 Split Cores CTsDAE P204 200 Kit UL Listed kWh Smart Submeter 3P4W 3 hot wire 1 neutral 200A 120 208v 3 Split Core CTsDAE P204 200D S Kit UL Demand Electric kWh Submeter 3p4w 3 hot wire 1 Neutral 200A 120 208v 3 CTsDAE P252 200D S Kit Demand 200A 480v UL RS485 kWh Smart Submeter 3P3W 3 hot wire no Neutral 2 CTs inner dia 1 02
Amps:200 Amps
Shape:Multi-Function, Split CTs
Size:120/208V, 3 hot, 1 neutral

Key item features

  • UL/CUL Listed, California CTEP Approved. Certified by independent test lab to exceed ANSI C12.1 national accuracy standards. Revenue-grade 0.5% accuracy. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. One in-inline fuse with holder is attached for you to connect hot wire A to VA of the meter. The meter is powered by VA and VN. VB and VC just take the reference of voltage from hot wire B, C. They do not need in-inline fuse.
  • DAE Cloud Metering (2nd picture) available with DAE CC2030 Gateway. DAE CC2030 gateway will get the energy data from DAE electrical meters and send them to the cloud (DAE server) through Ethernet. With PC, cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly kWh consumption and billing reports to their tenants. TOU (Time of Use) billing reports are also available.
  • For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Indoor use only, DAE B1725 watertight enclosure is available for outdoor use.
  • Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).

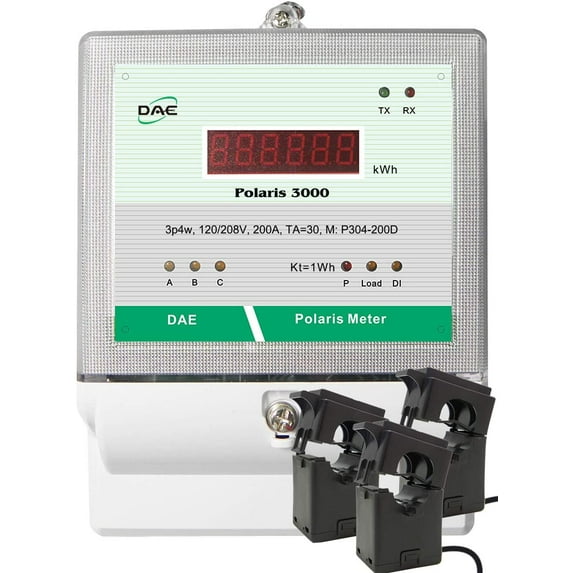

  • Multi-function Smart Submeter, Polaris 3000, 3 phase, 4 wire (3 hot wire, 1 neutral), 200 amp, 120/208 volt, with 3 Split Cores Current Transformers (inner diameter 0.94 inch), Modbus rtu/rs485 communications, with display of kWh, kW, voltage, current, kVArh, PF, demand. 1000 pulses per kwh. For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
Current price is $749.16
Price when purchased online
  • Free shipping
  • Free 30-day returns
