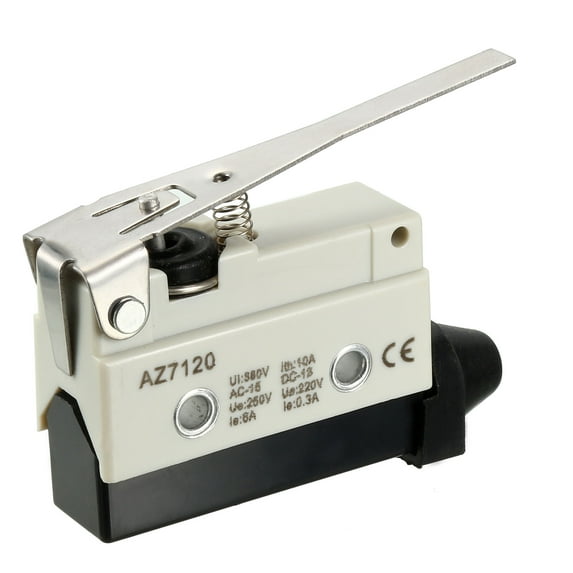

AZ-7120 SPDT 1NO+1NC Long Hinge Lever Type Momentary Micro Switch

Features:
Excellent accessibility, stable performance, practical and convenient
Multi-place use of gasket design
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.
Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.

Specification
Product Name: Micro Switch;
Model No.: AZ-7120;
OF max.: 150g
RF min.: 40g
PT max.:    13.5mm
OT min.:    4.0mm
MD max.: 3.2mm
OP:    25+/-1mm
Contact Form: SPDT NO+NC
Termination Style: Screw Terminal;
Terminal Number: 3
Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 6A; DC-13 Ue: 220V Ie: 0.3A;
Protection degree: IP62
Overall Size: 77x57x20mm/3.03x2.24x0.79inch(L*W*H)
Fixing Holes Dia.: 4mm/0.16inch;
Net Weight : 46g;

Package Content
1 x Microswitch
