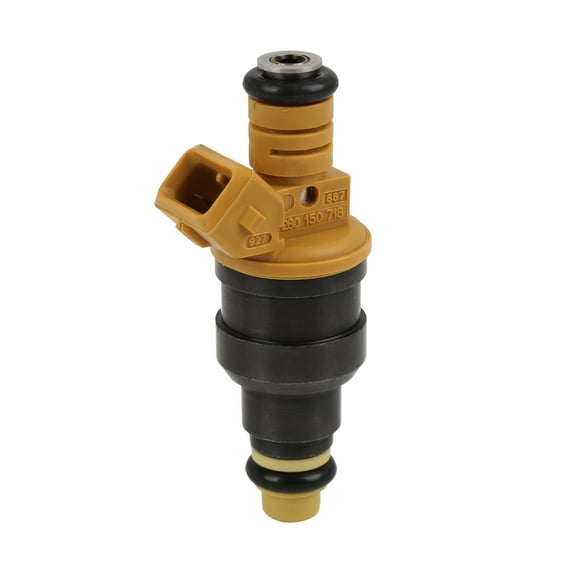

0280150718 Flow Matched Fuel Injector Replacement for Ford Excursion 00-05

• Condition:
• O-Rings Included: Yes, Preinstalled
• Injector Design: Metal, Composite Plastic
• Orifice Type: 4 Holes Disc
• Connector Type: EV1
• Filter Design: Basket Filter Design at Inlet
• Spray Pattern: 15 Degree Spray Cone
• This is Non-OEM prodcut, accessory only!

Fit for:

• for Ford Excursion 2000-2005
• for Ford for Mustang 1996-2004
• for Ford E-150 2003
• for Ford E-150 Club Wagon 2003
• for Ford E-250 2003
• for Ford E-350 Club Wagon 2003
• for Ford E-350 Super Duty 1999-2003
• for Ford F-150 1989-2003
• for Ford E-150 Econoline 1990-2002
• for Ford E-150 Econoline Club Wagon 1990-2002
• for Ford E-250 Econoline 1990-2002
• for Ford E-350 Econoline Club Wagon 1990-2002
• for Ford Expedition 1997-2002
• for Lincoln Town Car 1991-1994

Specification:

• Coil Resistance: 12 Ohms / High Impedance
• Static Flow Rate: 215cc/min at 43PSI
• Offset: 0.055ms
• Turn On Time: 14VDC: 1.14ms
• Turn Off Time: 0.85ms 300KPa
• Amperage: 1.0 Amps
• Pressure: Min 30PSIG/Max 100PSIG
• Variance: 2%
• Length: 77mm/3.03"
• O-ring to O-ring Length: 63mm/2.5"
• Diameter: 16mm/0.63"
• O-Ring Diameter: 14.5mm/0.57"
• Color: Multi-color
• Material: Plastic, Metal
• OE Number: 0280150718

Package Include:

• 1 x Fuel Injector

• Step 1. Make sure the engine is cool down. Disconnect the battery.
• Step 2. Remove the bolts and brackets from the fuel rail.
• Step 3. Disconnect the plug on each injector.
• Step 4. Lift the fuel rail and remove the injector from the fuel rail.
• Step 5. Press the new injector into the rail. Reattach the fuel rail and put the injectors in their respective holes.
• Step 6. Bolt down fuel rail. Reattach fuel line. Plug in injector connectors. Reconnect battery.
• Step 7. Double check for fuel leaks before and after starting the engine.

• This installation should be done by an experienced mechanic who has access to a factory manual and all required tools!
