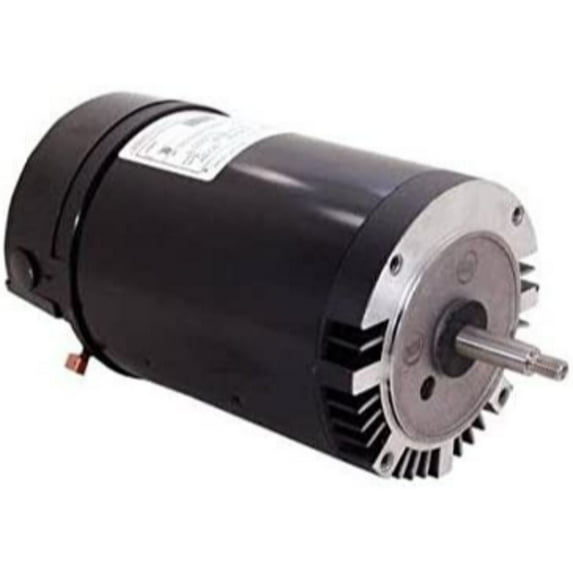

The Pool Supply Shop 2.5 HP C Face Threaded Shaft Horizontal Pool Pump Northstar Motor, 1.1 SF

Here comes the 2.5 HP as the ideal replacement motor for your pools. Easing you out, it tackles moisture issues and ensures a suitable overflow. This valuable addition provides highly efficient maintenance. Product Features: Switch less rigid base pool pump motor. Motor has a threaded shaft. Haywared Northstar replacement. Cool running for longer winding life. E-coated main frame for superior corrosion resistance. Energy efficient and low noise. Single phase motors. Additional Features: Output HP: 2.5 Hp. Current: SF 13.0-11.8 A. Frequency: 60 Hz. Service Factor: 1.1. Duty: continuous. Frame size: Y56J. Protector: thermally protected. UL: recognized. Output KW: 1.9 kW. Voltage: 208-230 V. Speed: 3450 rpm. Ambient temperature: 50°C. Phase: 1. Insulation Class: B. Enclosure: drip proof. CSA: Y. Electrical type: permanent split capacitor, single or dual voltage. Rotation: counterclockwise pump end. Motor orientation: horizontal. Opp drive end bearing: BALL. Shaft type: threaded. Poles: 2. Mounting: C face. Drive end bearing: BALL BRG. Dimensions: Frame length: 8.50". Shaft extension: 2.56". Overall length: 14.60". Shaft diameter: 0.62" . Material(s): stainless steel. Frame material: rolled steel
