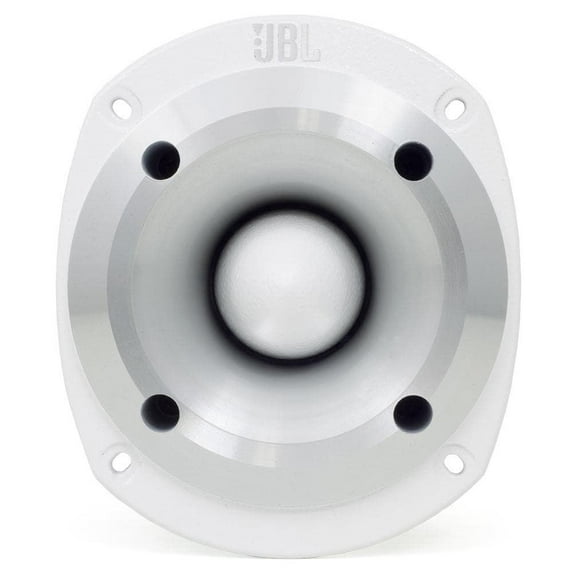

JBL Super White Tweeter

(No ratings yet)

Key item features

1.6 in. Voice Coil Diameter
150W RMS
300W Peak
8 Ohm

Specs

Brand
JBL
Rms power rating
150 W
Peak audio power handling
300 W
Rec. use
PA Systems
Cutout diameter
4.3 in
Speaker driver types
Tweeter

Current price is $89.99

Price when purchased online

Free shipping
Free 15-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

2-Year Plan - $9.00

3-Year Plan - $13.00

How do you want your item?

Columbus, 43215

Arrives between Apr 14 - Apr 17

Sold and shipped by GREATPRICE

4.238095238095238 stars out of 5, based on 588 seller reviews(4.2)

Report an issue with this seller

Free 15-day returns

About this item

Product details

Ideal super tweeter when the reproduction of high frequencies must define the instruments. Recommended for PA systems, stage monitors and most sound reinforcement systems in general. Extremely high sensitivity and lower distortion.

* Nominal impedance: 8 Ohms
* Minimum impedance @ 9,400 Hz: 7.8 Ohms
* WARNING: Must be connected with an appropriate crossover.
* Music program power using crossover: (HPF 5,000 Hz - 12dB/oit) -:200 W, (HPF 8,000 Hz - 12dB/oit)-300 W
* Sensitivity (2.83V@1m) averaged from 6 to 15 kHz 111 dB SPL
* Frequency response @ -10 dB:. 4,000 to 20,000 Hz
* Sound dispersion (H x V):40 x 40 degrees
* Diaphragm material: Phenolic
* Voice coil diameter: 42 (1.6) mm (in)
* Flux density: 1.70 T
* Magnet material:Barium ferrite
* Magnet weight: 470 (16,5) g (oz)
* Magnet diameter x depth:102 x 14 (4.02 x 0.55) mm (in)
* Magnetic assembly weight: 1,200 (2.64) g (lb)
* Housing material:Aluminium
* Housing finish: Machined, painted
* Voice coil material: CCAW Voice coil former material: Polyimide (Kapton)
* Voice coil winding length: 2.2 (7.2) m (ft)
* Voice coil winding depth: 2.0 (0.08) mm (in)
* Wire temperature coefficient of resistance (a25) . 0.00356 1/ DegreesC
* Net weight: 1,690 (3.13) g (lb)
* Gross weight:1,740 (3.72) g (lb)
* Carton dimensions (W x D x H) . 12.0 x 14.0 x 10.0 (4.7 x 5.5 x 3.9) cm (in)
* Number of bolt-holes: 4
* Bolt-hole dimensions: .4 x 5.5 (0.16 x 0.21) mm (in)
* Distance between bolt-holes (H x V) 86 x 91 (3.38 x 3.59) mm (in)
* Baffle cutout diameter (front mount):106 (4.17) mm (in)
* Connectors: Push terminals
* Polarity: Positive voltage applied to the positive terminal (red) gives diaphragm motion toward the horn throat

1.6 in. Voice Coil Diameter
150W RMS
300W Peak
8 Ohm
