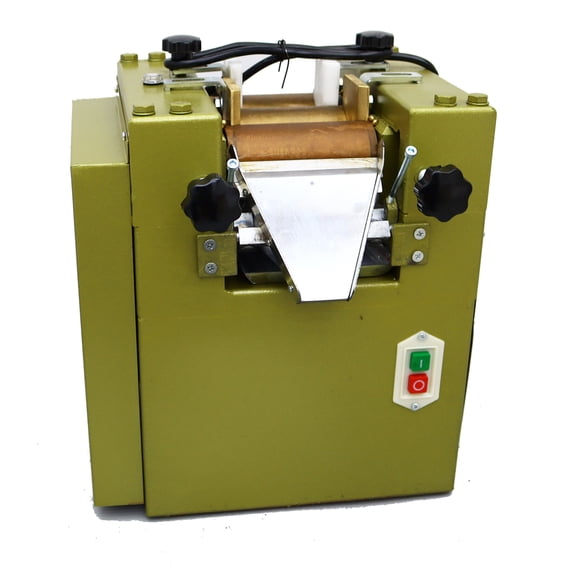

INTSUPERMAI Electric Pigment Grinding Machine Three Roll Mill Machine Yellow 220V

(No ratings yet)

Key item features

Please notice when grind white object, this machine need to change plastic orifice plate. Any problems, please contact us.
Three rollers of the machine with chilled alloy casting, thickness of chilled alloy layer is 15 - 25 mm, surface hardness is HS68 ~ 75. After grinding for once or several times, finally achieve the required fineness (about 3 to 18 microns in general, to fineness determination).
Three-roll mill consists of seat, the guide cover, the roll shaft housing, feeding copper knife, the riving knife plate, the cooling means and gears, pulleys, etc.
By adjusting the pressure screw on the blade, the incision should be slightly higher than the center of the roll,this makes it easy scraped the materials attached to the roller surface.
The machine is mainly used to grind various paint, ink, paint pigments, paints, food, cosmetics and other paste materials. The machine has become the main equipment of abrasive material.

Specs

Brand
intsupermai
Horsepower
0.75 HP
Spindle speed
1400 rpm
Features
Adjustable
Height
21 in
Volts
220 V

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $1,199.00

About this item

Product details

Introduction:
The three-roller grinder is suitable for paste or high viscosity materials which need to be dispersed and whose fineness is required. Through the horizontal three roller surface extrusion, manual adjustment of the distance between the roller, friction at different speeds to achieve the grinding effect. Equipped with emergency brake button to prevent falling into the device caused by foreign body damage.

Parmeters:
Roller diameter: 65mm
Roller working face length: 125mm
Roller speed: Slow:32,Medium: 89,Fast: 250
Roller speed ratio: 1:2.8:7.8
Motor: Model: Ys7144
Power:0.75KW
Speed:1400rpm

Items included: 4-134121
INTSUPERMAI Three Rolls Mill Grinder Lab Equipment 220V for Paint Pigment Printing Ink Cosmetic

Please notice when grind white object, this machine need to change plastic orifice plate. Any problems, please contact us.
Three rollers of the machine with chilled alloy casting, thickness of chilled alloy layer is 15 - 25 mm, surface hardness is HS68 ~ 75. After grinding for once or several times, finally achieve the required fineness (about 3 to 18 microns in general, to fineness determination).
Three-roll mill consists of seat, the guide cover, the roll shaft housing, feeding copper knife, the riving knife plate, the cooling means and gears, pulleys, etc.
By adjusting the pressure screw on the blade, the incision should be slightly higher than the center of the roll,this makes it easy scraped the materials attached to the roller surface.
The machine is mainly used to grind various paint, ink, paint pigments, paints, food, cosmetics and other paste materials. The machine has become the main equipment of abrasive material.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

intsupermai

Horsepower

0.75 HP

Spindle speed

1400 rpm

Features

Adjustable
