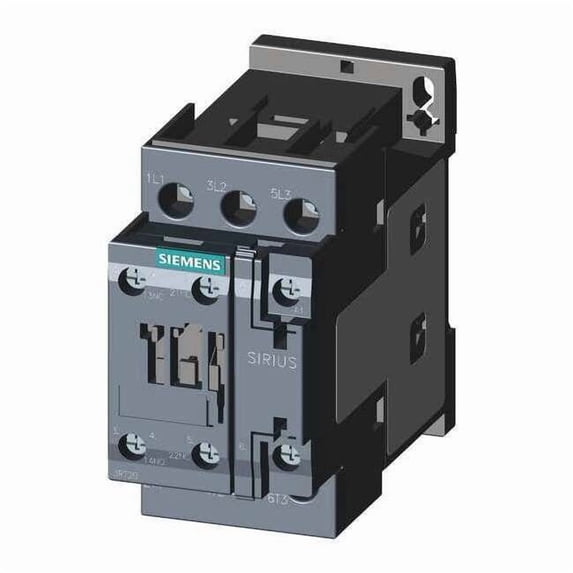

Hero image 0 of IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw, 0 of 1
IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw
(No ratings yet)
Key item features
- Standards REACH Art 33, WEEE (2012/19/EU)
- Depth 3.82 in
- Electrical Connection Screws
- Height 1.77 in
- Length 4.000
- Phase Three
- Series SIRIUS 3RT20
- Width 1.77 in
Specs
- Number of poles3
- Motor contactor typeIEC Magnetic Contactor
- BrandSiemens
- Model nameSIRIUS Power Contactor
- Has nrtl listing certificationN
- Accessories2 Auxiliary Contacts
Current price is USD$110.00
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Fri, Apr 10
|Sold and shipped by Begench Igdyrov
4.666666666666667 stars out of 5, based on 3 seller reviews(4.7)3 seller reviews
Free 30-day returns
More seller options (1)
Starting from $143.98
About this item
Product details
The Siemens IEC Magnetic Contactor is a three-pole device compatible with IEC standards. It includes two auxiliary contacts (one normally open, one normally closed) and three main contacts that are normally open. The coil operates at 208 V AC; wiring connections are made via screw terminals. It is part of the SIRIUS 3RT20 series (frame S0). This product does not include an enclosure but has an IP20 ingress protection rating (not enclosed). - Item: IEC Magnetic Contactor; Series/Frame: SIRIUS 3RT20, Frame Size S0 - Poles/Contacts: 3 poles; 3 normally open main contacts; 2 auxiliary contacts (1NO/1NC) - Auxiliary Contacts: 2 total; Configuration 1NO/1NC - Coil Voltage: 208 V AC - Action: Non-Reversing; Reversing: No - Electrical Connection: Screw terminals - Enclosure/IP: IP20 ingress protection rating (enclosure not included) - Maximum Voltage Rating: 690 V AC - Frequency: 50/60 Hz - Full Load Amps: Inductive 25 A; Resistive 40 A - Full Load Currents: Inductive 25 A; Resistive 40 A - HP @ Various Voltages (Single/Three Phase): 2 hp @ 120V; 3 hp @ 230V; 3 hp @ 240V; 5 hp @ 208V (3-phase); 7.5 hp @ 240V (3-phase); 15 hp @ 480V (3-phase); 20 hp @ 575V (3-phase); 20 hp @ 600V (3-phase) - Dimensions: Width 2.15 in; Height (overall) 3.55 in; Depth (overall) 4.1 in; Mounting Style: DIN Rail, Surface; Mounting Position: Vertical; Mounting Hole Diameter: 0.19 in; Hole Distances: Height 2.36 in; Width 1.38 in - Standards/Compliance: REACH Art 33, WEEE - Response Time (AC/DC variations): AC closing 4–16 ms; AC opening 4–16 ms; DC opening 16–17 ms; DC closing 50–170 ms - Includes Auxiliary Contacts: Yes - Other: Max. Operating Watts 11 kW (AC-3 at 400V), 23 kW (AC-1 at 400V); Mechanical Durability 10,000,000 cycles; Operating Temp Range -13°F to 140°F
- Standards REACH Art 33, WEEE (2012/19/EU)
- Depth 3.82 in
- Electrical Connection Screws
- Height 1.77 in
- Length 4.000
- Phase Three
- Series SIRIUS 3RT20
- Width 1.77 in
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Number of poles
3
Motor contactor type
IEC Magnetic Contactor
Brand
Siemens
Model name
SIRIUS Power Contactor
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
