InfiRay P2 Pro Thermal Camera 25 Hz Thermal Imager for iPhone iOS 256x192 IR Thermal

Name: InfiRay P2 Pro Thermal Camera 25 Hz Thermal Imager for iPhone iOS 256x192 IR Thermal
Brand: InfiRay
SKU: 5764353214
Price: 278.69 USD
Availability: OutOfStock

(No ratings yet)

Key item features

Product Description

Specifications:

Model: P2 Pro

Resolution : 256x192

Pixel pitch: 12 μm

Operating Band: 8-14 μm

NETD : <50mk@25°C, F#1.0

Performance:

Frame rate : 25Hz

Operating temperature : -10°C~+55°C

Storage temperature : -40°C~+85°C

Power consumption: 350mW

Processor: Self-developed ASIC chip

Lens

Focal length: 3.6mm

Aperture: F1.1

FOV: 56.0°x 42.2°

Focusing mode: athermalized prime lens

Measuring range: -20°C~550°C

Measuring error: ± 2°C (± 2°C of reading, the greater shall prevail)

Temperature correction: emissivity, distance, environmental temperature

Shell

Size: 27X18X9.8(mm)

Color: Silver

Weight: 9g

Interface: iPhone iOS

App function:

Palette: White/black-hot+6 pseudo colors

Measurement Method: Point/Line/Area temperature measurement

Information Sharing: Instant picture sharing

Data Analysis : Secondary temperature analysis and processing if images

Imaging Tool: Android 9.0 and above

Software Update: Online update

APP Installation: P2 Pro

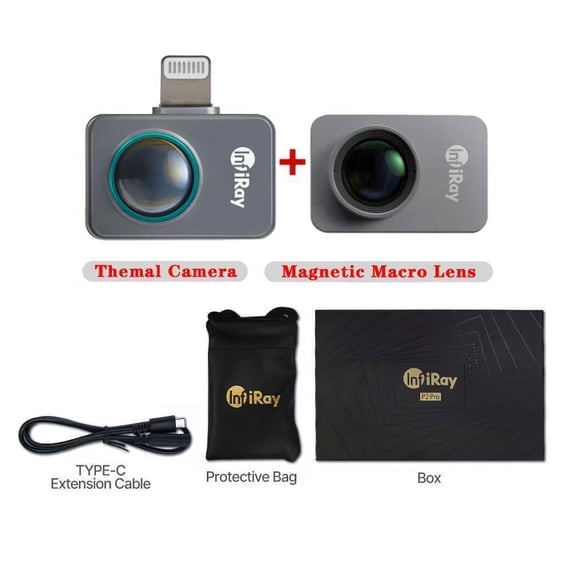

package content

1X P2 Pro

1X Protective bag

1X Connecting line

1X Cleaning Cloth

1X Manual

1X Box

Specs

Resolution
256x192
Brand
InfiRay
Resolution
256x192
Focus type
Manual
Power type
Battery
Features
Compact

Current price is $278.69

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

About this item 9G Fully Metal Body: The InfiRay P2 Pro thermal camera imager ,It has a 9g fully metal body, making it Compact and Strong.Dimension of 27mm×18mm×9.8mm and weighs 9g. 256X192 Resolution: With 256x192 IR resolution/49,152 pixels and fast 25Hz frame rates, and a wide temperature range from -4°F to 1022°F (-20°C to 550°C). Powerful Secondary Analysis: The InfiRay P2 ProThermal Camera Imager is a device that captures thermal images and records temperature data,secondary Analysis of the temperature data in the thermal images. Support Android 9.0 and above: InfiRay P2 ProThermal Camera Imager is a high-tech product that supports android 9. 0 and above. It has a built-in thermal camera that can detect and display the surrounding environment in real-time. Baterry-free Design: InfiRay P2 Pro thermal camera make easy to use with mobile and no need extra battery and device is compacted. Made with high quality and you can make good thermal camera experience with InfiRay P2 Pro. Widely Application: the Infiray P2 Pro is perfect for home inspections, missing insulation, floor heating, water pipe, facility maintenance, HVAC troubleshootin.

Product Description

Specifications:

Model: P2 Pro

Resolution : 256x192

Pixel pitch: 12 μm

Operating Band: 8-14 μm

NETD : <50mk@25°C, F#1.0

Performance:

Frame rate : 25Hz

Operating temperature : -10°C~+55°C

Storage temperature : -40°C~+85°C

Power consumption: 350mW

Processor: Self-developed ASIC chip

Lens

Focal length: 3.6mm

Aperture: F1.1

FOV: 56.0°x 42.2°

Focusing mode: athermalized prime lens

Measuring range: -20°C~550°C

Measuring error: ± 2°C (± 2°C of reading, the greater shall prevail)

Temperature correction: emissivity, distance, environmental temperature

Shell

Size: 27X18X9.8(mm)

Color: Silver

Weight: 9g

Interface: iPhone iOS

App function:

Palette: White/black-hot+6 pseudo colors

Measurement Method: Point/Line/Area temperature measurement

Information Sharing: Instant picture sharing

Data Analysis : Secondary temperature analysis and processing if images

Imaging Tool: Android 9.0 and above

Software Update: Online update

APP Installation: P2 Pro

package content

1X P2 Pro

1X Protective bag

1X Connecting line

1X Cleaning Cloth

1X Manual

1X Box
