Hero image 0 of UNI-T Thermal Imager For Phone UTi260M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera, 0 of 9

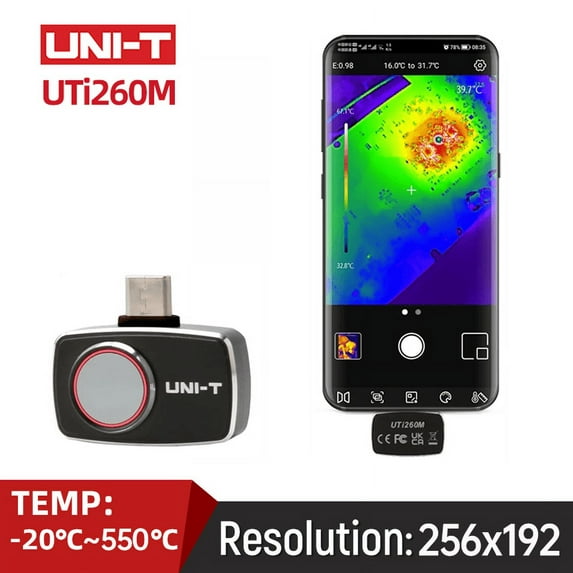

UNI-T Thermal Imager For Phone UTi260M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera

(No ratings yet)

UNI-T Thermal Imager For Phone UTi260M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera UNI T Thermal Imager For Phone UTi260M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera UNI T Thermal Imager For Phone UTi260M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera UNI T Thermal Imager For Phone UTi256M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera UNI T Thermal Imager For Phone UTi260M Thermographic PCB Circuit Failure Floor Heating Test Infrared Thermal Camera

Actual Color:UTi260M with lens

UTi256M, $312.00

UTi256M with lens, $399.00

UTi260M, $259.00

selected, UTi260M with lens, $409.00

Key item features

✨【Temperature Measurement Selection】Industrial temperature measurement range: Low temperature gear: -20～150℃；High temperature gear: 0~550℃.
✨【Seven Color Palettes Adjustable】Users can observe real-time images, with iron red, rainbow,black heat, white heat, red heat, lava, high-contrast rainbow,seven color palettes to choose the appropriate observationmode to highlight different temperature differences display imaging.
✨【Frame Rate 25HZ】The image responds quickly and does not freeze, improving yourwork efficiency.
✨【High and Low Temperature Alarm】The user can customize the high/low temperature threshold, and theinterface will display a triangle symbol alarm when the set threshold isexceeded in the real-time interface.
✨【Analysis Objects Can be Added】ln addition to the center point, high and low temperature points,image analysis can also be performed on real-time images andimages saved in the gallery, and point, line, and rectangle analysisobjects can be added, and more temperature information can belearned through analysis.
✨【Manual Iso thermal Function】A variety of manual isothermal setting modes can be set, which is convenient forusers to adjust the real-time test screen.By adjusting the upward/downwardtemperature segment display, it is convenient to highlight the temperature partthat you want to focus on.
✨【Applications】lt can be used for power distribution cabinet detection, electronic circuit boarddetection,HVAC detection, hidden heat source detection inside and outside thehouse, heating pipe detection, etc. lt is the "third eye" for industrial inspectionand home travel.

Specs

Resolution
256*192
Brand
A-BFASTIRON
Resolution
256*192
Focus type
Fixed
Rec. use
Industrial
Assembled product height
3.94 in

Current price is $409.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives between May 11 - May 14

Sold and shipped by A-BF Offical Store

3 stars out of 5, based on 2 seller reviews(3.0)

Report an issue with this seller

Free 30-day returns - in store or online

About this item

Product details

✨Dear friend, welcome to our store, we provide various models of thermal imaging cameras, we will do our best to provide you with the best service!
📌Characteristics:
Emissivity：0.95[default]0.01~1.00
Thermal Imaging Pixels：256*192(491525)
Thermal Imaging Pixel Size：12um
lnfrared Spectral Banc Width：8-14um
Pseudo-Color (Swatdhes)：lron Red,Rainbow,Black Hot, White Hot, Red Hot,Lava, High Contrast Rainbow
Field of View (Thermal Imaging)：56.0(H)x42.2”(W)
Fov：3.8mrad
Lens Focal Length：3.2mm
Focus Mode：Fixed focus [free focus)
Sensitivity：<50mK@25°C
Frame Rate：25Hz
Temperature Analysis：Point, Line,Rectangle(add up to 6)
Temperature Display：Center point temperature, highylaw temperature tracking
Temperature Measurement Unit：celsius [default), Fahrenheit
High and Low Temperature Alarm：√
lmage Mode：Thermal imaging, fusion /fusion with mobile phone digital camera image), picture-in-picture
lmage Capture Mode：Photo, video
lmage Save Format：.JPG
lmage Browsing：can rotate, doodle mark,temperature analysis, delete, save
Device Communication：Type-C USB [male)
Voice：Chinese/English
Mobile APP：(supports Google Play)
Phone System：Android 6.0 and above
Working Power Consumption：< 350mW(normal temperature typical value)
Certification：FCC CE (EN61326-1)
Operating Temperature：-10℃~ 50°C(14°F~122°F)
Storage Temperature：-20℃- 6orC [-4°F~140°F]
Working Humidity：109%-95%Rh (non-condensing)

✨【Temperature Measurement Selection】Industrial temperature measurement range: Low temperature gear: -20～150℃；High temperature gear: 0~550℃.
✨【Seven Color Palettes Adjustable】Users can observe real-time images, with iron red, rainbow,black heat, white heat, red heat, lava, high-contrast rainbow,seven color palettes to choose the appropriate observationmode to highlight different temperature differences display imaging.
✨【Frame Rate 25HZ】The image responds quickly and does not freeze, improving yourwork efficiency.
✨【High and Low Temperature Alarm】The user can customize the high/low temperature threshold, and theinterface will display a triangle symbol alarm when the set threshold isexceeded in the real-time interface.
✨【Analysis Objects Can be Added】ln addition to the center point, high and low temperature points,image analysis can also be performed on real-time images andimages saved in the gallery, and point, line, and rectangle analysisobjects can be added, and more temperature information can belearned through analysis.
✨【Manual Iso thermal Function】A variety of manual isothermal setting modes can be set, which is convenient forusers to adjust the real-time test screen.By adjusting the upward/downwardtemperature segment display, it is convenient to highlight the temperature partthat you want to focus on.
✨【Applications】lt can be used for power distribution cabinet detection, electronic circuit boarddetection,HVAC detection, hidden heat source detection inside and outside thehouse, heating pipe detection, etc. lt is the "third eye" for industrial inspectionand home travel.
