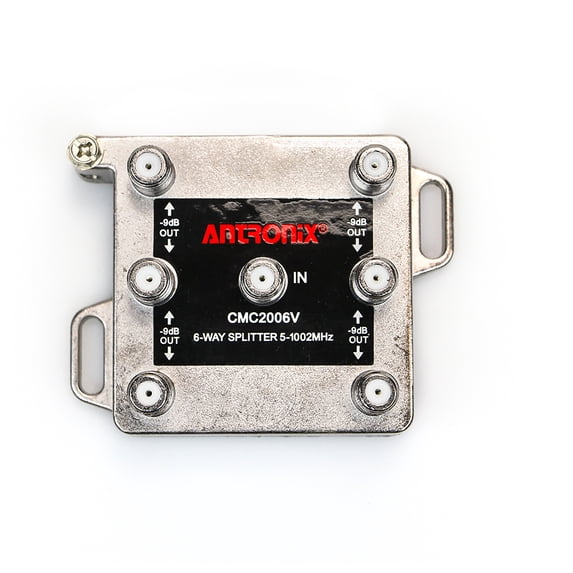

Antronix Digital 6-way RG6 Splitter Coaxial Signal CMC2006V Cable HDTV 1GHz 1002MHz
Key item features
- Robust Construction: Features a zinc alloy diecast housing with nickel alloy plating and a 100% soldered back for 120 dB RFI shielding and superior corrosion resistance.
- Surge Protection: Capacitively coupled F-ports block AC surges and all ports withstand multiple 6 kV ring wave surges per IEEE C62.41 Category A3 specifications.
- Advanced Ferrite: Proprietary ferrite blend inhibits core re-magnetization and maintains ultra-linear performance after surges, preventing intermodulation.
- Sealed Ports: 1-inch port-to-port spacing with flat 15 psi sealed, SCTE compliant F-ports prevents water migration and ensures excellent ground connection.
- Broadband Compatibility: Supports a flat 1 GHz bandwidth with minimal insertion loss, accommodating video, data, and telephony applications.
- Enhanced Connectivity: Eclipse Contact Technology (ECT) F-ports provide 400% more contact surface area for lower contact resistance and higher reliability.
- Versatile Mounting: Includes integrated mounting tabs and a heavy-duty ground block, available in a universal mount design ideal for NID enclosures.
Specs
- ConnectionCoaxial
- Number of outputs6
- Electronic end connection 1F-port
- Connector genderFemale-to-Female
- BrandAntronix
- ColorBlack
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Reliability, quality and performance define the Antronix CMC2000 series digital splitter. Our horizontal, vertical and universal digital splitters have been designed specifically for today’s two-way broadband networks and the CMC2000Us are ideal for Network Interface Device (NID) box installations. Our digital splitters are among the most robust in the industry. Every port on each CMC2000 series splitter withstands multiple 6 kV ring wave surges, while our proprietary ferrites remain ultra-linear following several surges. The CMC2000 series digital splitters are encased in a zinc alloy diecast housing with nickel alloy plating and employ high “Q” surface mount technology (SMT) components - guaranteeing consistent performance over time and temperature. With more than 90 versions available, there is a CMC2000 digital splitter for every network need.
• 6 kV Ring Wave Surge Withstand
All ports withstand multiple 6 kV ring wave surges per IEEE specification C62.41 Category A3.
• -45 dBmV Spurious and Harmonics after 5 Surges of 6 kV Ring Wave with a +55 dBmV Return Signal Proprietary ferrite blend inhibits re-magnetization of the core due to voltage spikes from impulse noise or lightning. The ferrite remains ultra linear to prevent intermodulation where high level return carriers can affect forward path video signals.
• Flat 1 GHz Bandwidth with Minimal Insertion Loss
Supports present and future multimedia applications including video, data and telephony.
• High Return Path Output Return Loss and Port-to-Port Return Band Isolation
Excellent return path performance compatible with two-way digitally modulated networks.
• Eclipse Contact Technology (ECT) F-port
Provides 400% more contact surface area for lower contact resistance and higher reliability.
- Capacitively Coupled F-ports protect against core re-magnetization and saturation while blocking AC surges.
- Zinc Alloy Diecast Housing and Backplate w/Proprietary Nickel Alloy Plating, superior corrosion resistant plating combined with a diecast backplate protects the back of the housing where corrosion is more prominent.
- 100% Soldered Back ensures repeatable 120 dB RFI shielding.
- 1 inch Port-to-Port Spacing Flat 15 psi Sealed, SCTE Compliant F-port prevents water migration in to the splitter and ensures an excellent ground connection.
- UV Resistant Label, Integrated Mounting Tabs and Heavy Duty Ground Block for Years of Reliable Service, Available in Universal Mount Design Ideal for NID Enclosures, for either vertical or all ports facing down installation.
Specifications
Connection
Number of outputs
Electronic end connection 1
Connector gender
Warranty
Warranty information
