Hero image 0 of Eighteen Sound 15W750-8 15-inch High Power Woofer with Weather Protected Cone and Plates for Outdoor Usage 8 Ohms, 0 of 5

Eighteen Sound

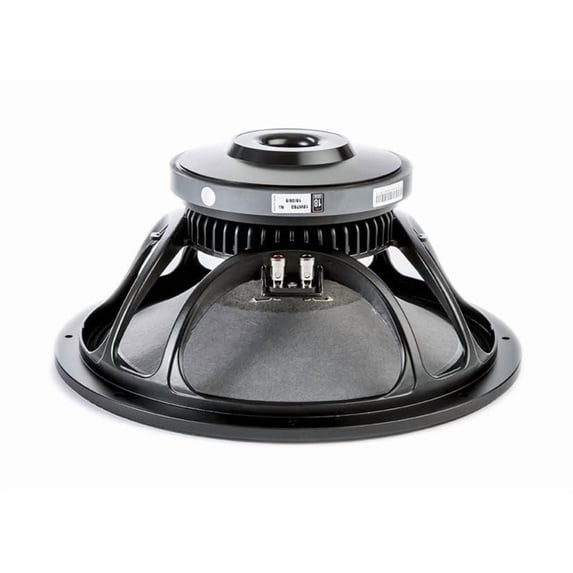

Eighteen Sound 15W750-8 15-inch High Power Woofer with Weather Protected Cone and Plates for Outdoor Usage 8 Ohms

(No ratings yet)

Key item features

Nominal Diameter: 380 mm 15 in Rated Impedance: 8 Ohm AES Power: 600 W Program Power: 1200 W Peak Power: 2500 W Sensitivity: 97 dB
Frequency Range: 50 - 4300 Hz Power Compression -10dB: 1.0 dB Power Compression -3dB: 2.8 dB Power Compression Full Power: 4.0 dB Max Recomm. Frequency: 1800 Hz Recomm. Enclosure Volume: 80 - 140 lt.
2.82 - 4.95 cuft Minimum Impedance: 6.1 Ohm at 25 DegreesC Max Peak To Peak Excursion: 38 mm 1.50 in Voice Coil Diameter: 75 mm 3 in Voice Coil winding material: Aluminum Suspension: Triple-roll. Polycotton Cone: Curvilinear. high damping pulp Thiele Small Parameters Fs: 39 Hz Re: 5.1 Ohm Sd: 0.091 sq.mt.
141.05 sq.in. Qms: 9.34 Qes: 0.39 Qts: 0.37 Vas: 218 lt. 7.70 cuft Mms: 88 gr. 0.19 lb BL: 17.6 Tm Linear Mathematical Xmax: +/- 8 mm +/- 0.31 in Le 1kHz: 1.10 mH Ref. Efficiency 1W1m half space: 97.2 dB Mounting information Overall diameter: 393 mm 15.47 in N. of mounting holes and bolt: 8
"Mounting holes diameter: 7.15 mm 0.28 in Bolt circle diameter: 371 mm 14.6 in Front mount baffle cutout : 354 mm 13.94 in Rear mount baffle cutout : 357 mm 14.06 in Total depth: 184.5 mm 7.26 in "

Specs

Brand
Eighteen Sound
Color
Black
Woofer size
15 in
Rms power rating
600 W
Peak audio power handling
2500 W
Audio feature
Outdoor Usage

Current price is Now $261.93

You save $53.07

was $315.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Overview

The 18 Sound 15W750-8 is a high-performance 15-inch woofer designed for professional audio applications, featuring excellent linearity and efficiency. This speaker is equipped with a robust 75 mm Interleaved Sandwich Voice coil ISV that enhances its power handling capabilities, supporting up to 600 W AES and 1200 W program power. It showcases a high sensitivity of 97 dB, ensuring powerful output even at lower power levels. The woofer is well-suited for use in various enclosure types, from tuned reflex to complex multi-way systems.

Features:

High Sensitivity: 97 dB SPL 1W/1m, providing significant output for professional uses.
Extended Frequency Response: Ranges from 50 Hz to 4300 Hz, making it versatile for both midbass and subwoofer applications.
Durable Construction: Features a weather-protected cone and plates, making it suitable for outdoor use.
Long Excursion Capabilities: Offers a maximum peak-to-peak excursion of 1.50 inches, allowing for powerful bass performance.

Specifications:

Power Handling: 600 W AES, 1200 W Program
Impedance: 8 ohms
Voice Coil Diameter: 3 inches
Sensitivity: 97 dB 1W/1m
Frequency Range: 50 Hz – 4300 Hz
Mounting Depth: 7.26 inches
Weight: Approximately 16.7 lbs

Nominal Diameter: 380 mm 15 in Rated Impedance: 8 Ohm AES Power: 600 W Program Power: 1200 W Peak Power: 2500 W Sensitivity: 97 dB
Frequency Range: 50 - 4300 Hz Power Compression -10dB: 1.0 dB Power Compression -3dB: 2.8 dB Power Compression Full Power: 4.0 dB Max Recomm. Frequency: 1800 Hz Recomm. Enclosure Volume: 80 - 140 lt.
2.82 - 4.95 cuft Minimum Impedance: 6.1 Ohm at 25 DegreesC Max Peak To Peak Excursion: 38 mm 1.50 in Voice Coil Diameter: 75 mm 3 in Voice Coil winding material: Aluminum Suspension: Triple-roll. Polycotton Cone: Curvilinear. high damping pulp Thiele Small Parameters Fs: 39 Hz Re: 5.1 Ohm Sd: 0.091 sq.mt.
141.05 sq.in. Qms: 9.34 Qes: 0.39 Qts: 0.37 Vas: 218 lt. 7.70 cuft Mms: 88 gr. 0.19 lb BL: 17.6 Tm Linear Mathematical Xmax: +/- 8 mm +/- 0.31 in Le 1kHz: 1.10 mH Ref. Efficiency 1W1m half space: 97.2 dB Mounting information Overall diameter: 393 mm 15.47 in N. of mounting holes and bolt: 8
"Mounting holes diameter: 7.15 mm 0.28 in Bolt circle diameter: 371 mm 14.6 in Front mount baffle cutout : 354 mm 13.94 in Rear mount baffle cutout : 357 mm 14.06 in Total depth: 184.5 mm 7.26 in "
