Hero image 0 of Jabsco Par-Max Heavy Duty Water System Pump, 12V, 3GPM, 0 of 6

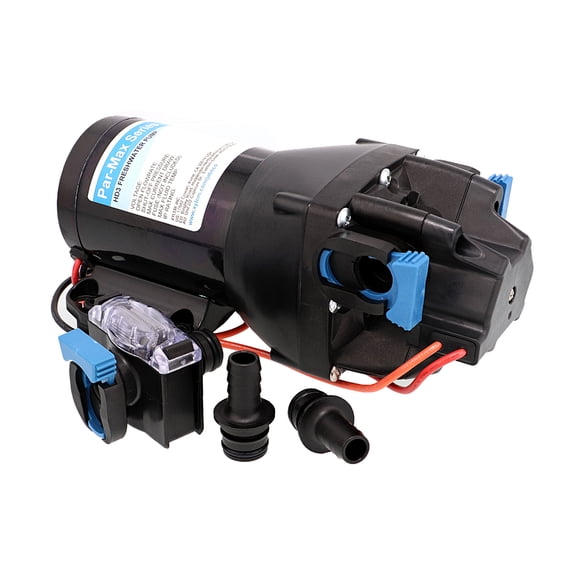

Jabsco Par-Max Heavy Duty Water System Pump, 12V, 3GPM

Name: Jabsco Par-Max Heavy Duty Water System Pump, 12V, 3GPM
Brand: JABSCO
SKU: 560985856
Price: 183.33 USD
Availability: InStock

(No ratings yet)

Jabsco Par-Max Heavy Duty Water System Pump, 12V, 3GPM Jabsco Par Max Heavy Duty Water System Pump 12V 3GPM Jabsco Par Max HD3 Heavy Duty Water Pressure Pump 12V 3 GPM 60 PSI

Capacity:40 PSI

Key item features

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Volts: 12v
Max PSI: 40
Gallons Per Minute: 3 GPM
Box Dimensions: 5"H x 6"W x 15"L WT: 6.95 lbs
UPC: 671880841832Brochure (pdf)

Specs

Gallons per minute
3 GPM
Plumbing pump type
Water Transfer Pumps
Power type
Corded Electric
Brand
JABSCO
Features
Heavy Duty
Volts
12 V

Current price is $183.33

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $24.00

4-Year Plan - $34.00

How do you want your item?

Ships to

Arrives between Jun 24 - Jun 26

Sold and shipped by The Factory Depot

4.265682656826568 stars out of 5, based on 1626 seller reviews(4.3)

Free 30-day returns

Other sellers

$184.58

+Free shipping

Shipping, arrives by Wed, Jun 24 to Columbus, 43215

Sold and shipped by Advance Cycle Parts

Free 30-day returns

About this item

Product details

Co-molded diaphragm technology for long life and durability ; HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures ; Efficient and quiet operation ; Integrated, sealed pressure switch for on-demand operation ; Self-priming allows for installation versatility ; Runs Dry Without Damage ; Self‐Priming ; Quick connect ports for ease of installation, servicing, and maintenance ; Vibration dampening mounting feet ; Equipped with integrated bypass module to reduce cycling and provide smoother flow; Quick Connect Strainer included

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Volts: 12v
Max PSI: 40
Gallons Per Minute: 3 GPM
Box Dimensions: 5"H x 6"W x 15"L WT: 6.95 lbs
UPC: 671880841832Brochure (pdf)
