ALEKO Back Up Kit ETL Gate Opener Operator for Swing Gates up to 1760 lb

• ETL Listed, more reliable and tested for your satisfaction
• Access your gates through remote control or keypad
• Smooth and soft start and stop function
• Emergency Release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing
• The force of the motor can be programmed
• Digital display indicates the running situation and setting menu
• Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position

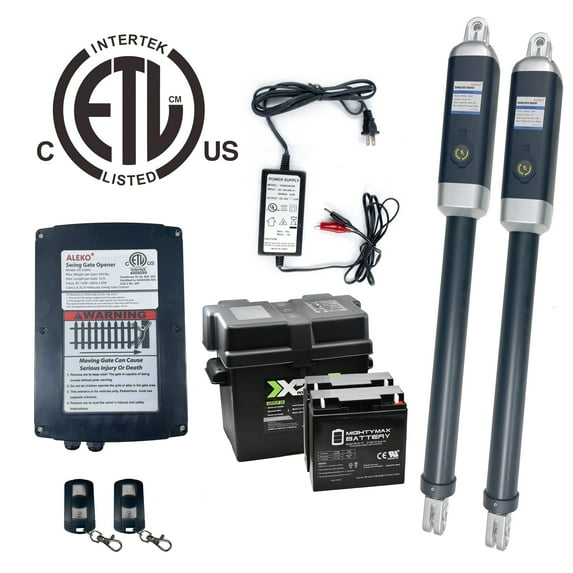

• Package Includes: 2 Swing Dual Gate Actuators (Arms), Control Box, 24V Adapter/Battery Charger, 2 Batteries 22AH, Battery Box,2 Remotes, Emergency Release Key, Manual, Mounting Hardware (bolts, nuts, brackets, etc), Wire Sold Separately

Technical Specifications:

• Motor:24 V DC, 80W per actuator, 3A current
• Power supply: 110V/60Hz (or 220V/50Hz)
• Actuator speed: 1.6 cm/second (.63”/second)
• Actuator travel: 400mm (15.75”)
• Max. Weight of each gate panel: 880 lbs
• Max. Width of each gate panel: 18 ft
• Auto-closing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: -22c- +55c
• Protection class: IP44
