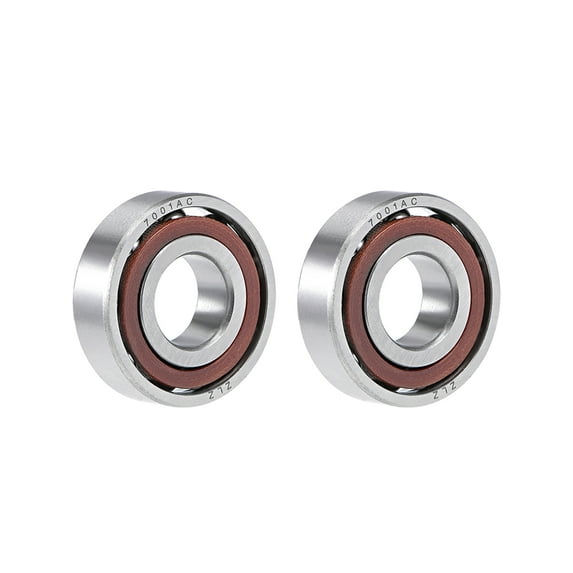

7001AC Angular Contact Ball Bearing 12x28x8mm Single Row, Open, Contact Angle 2pcs

Description:

• Single-row, pre-lubricated, normal accuracy.
• Single row angular contact ball bearings are designed to accommodate axial loads in one direction only.
• This type of bearing is typically adjusted against a second bearing.
• Their bearing rings have an upper and a lower shoulder and are non-separable.
• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
• Suitable for use in commercial and industrial applications including pumps and compressors, drives, gearboxes, and printing machines, among others.



Specification:
Model: 7001AC
Type: Open Type
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Nylon
Inner Diameter (d): 12mm
Outer Diameter (D): 28mm
Thickness (B): 8mm
Dynamic Load Rating (Cr): 5.4kN
Static Load Rating (Cor): 2.75kN
Contact Angle: 25°
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 2 Pcs
