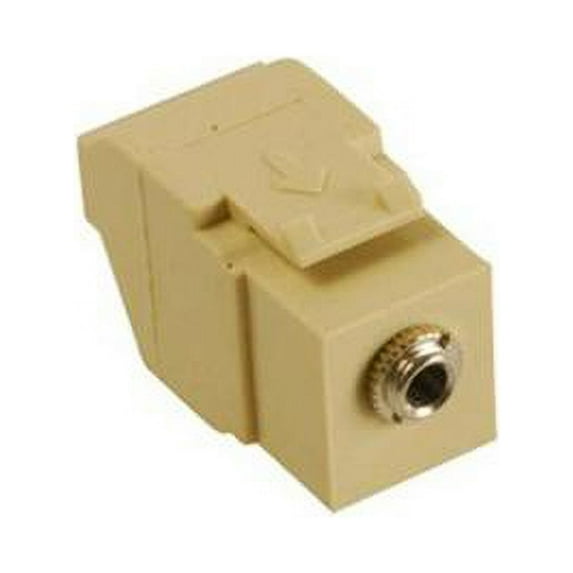

The 3.5 mm. modular jacks allows users to connect to headphone, microphone, infrared repeater devices, sound cards, and mp3 players from remote locations. The keystone jacks may be used in two or three conductor applications. Rear push-pin design allows for simple, fast connections to UTP cable or any 22-24AWG wire. This device is intended to provide easy installation of female 3.5mm modular jacks into any wall-plates and Decorex inserts.
Features - Connect to headphone, microphone, sound cards, and MP3 player from remote locations.
- Fast fingertip insertion.
- Capable of UTP wiring in size of 22~24 AWG for simple connection.
- Works with all ICC face-plates, Decorex inserts, surface mount boxes, and blank patch panels.
- Connector body - Phosphor bronze.
- Plating - Nickel.
- Housing - ABS.
- Rating - DC 50V 0.5A.
- Contact resistance - 50M Ohm max.
- Insulation resistance - 100m Ohm min.
- Insertion force - 0.3Kgf-3Kgf.
- Extraction force - 0.3Kfg-3Kfg.
- Color - Ivory.
- SKU: JLRS21899
