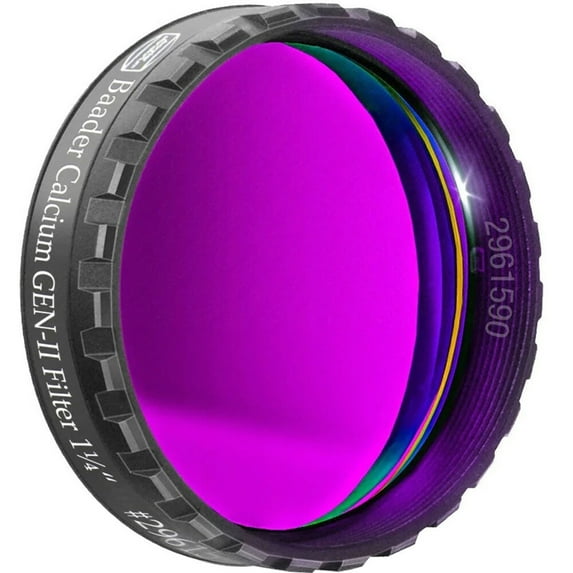

Baader Planetarium Calcium Gen-II 1.25" Unstacked Ca-K Solar Imaging Filter with LPFC
(No ratings yet)
Key item features
- The calcium GEN-II filter lets you observe the interesting border region between the photosphere, which is visible in white light, and the chromosphere of the sun, which is reserved for narrow-band H-alpha filters. In addition to the structures known from white light, such as sunspots, you can see the chromospheric network distributed over the entire surface of the sun, which precedes the formation of sunspots, as well as cells of supergranulation and Ellerman Bombs.
The emission line of calcium at 394 nm is already in the near UV. That's why observing the sun at this wavelength is only possible with a camera! Never use this filter for visual observations, as our eye is blind for the harmful UV-radiation, but can be damaged by it.
This filter delivers the best results when used with a monochrome camera (which is more sensitive in this part of the spectrum than a color camera) and mirror telescopes (because especially refractors with fast f/ratios are not optimized for best sharpness in this part of the spectrum). Nevertheless, many lens telescopes still work fine for calcium observations; unmodified DSLRs may need extremely long exposure times.
All calcium-filters require an additional solar filter in front of them. Part of the Baader GEN-II is a sheet of AstroSolar Photo Film OD 3.8, 20x30 cm (#2459278) to build a solar filter by yourself, so that you can start observing without purchasing any other filters. Of course, you can also use one of the BDSF: Baader Digital Solar Filter OD 3.8 (80mm - 280mm) which are already mounted in a filter cell. On suitable lens telescopes, you can also use a Herschel prism. That way, you can replace the integrated ND3-filter mounted behind the Herschel with a weaker filter to reach shorter exposure times. These filters are already in the scope of delivery of the Baader Safety CoolCeramic Herschel Prism 2" Photographic (#2956510P)
The calcium GEN-II replaces the older K-Line Filter 1 1/4" (stacked) # 2458355. Thanks to modern manufacturing techniques, a single filter now achieves a better quality and narrower half-band width (FWHM) of only 5 nm instead of the previous 8 nm; stacking two filters is now no longer necessary. This also makes it possible to use the filter in standard filter wheels/drawers; the low-profile filter mount is only 6 mm high when screwed in.
To use the 1 1/4"-filter at cameras with 2"-nosepiece, you can use either use a filter drawer like the Baader UFC System or a filter wheel. You can always use the filter thread of many barlow lenses as well as 1 1/4" nose pieces like Baader 1 1/4" T-2 nosepiece with Safety Kerfs (#2458106) . -
Filter Size
1 25"
-
Transmission Range
CaK-II
-
Filter Thickness (Without Cell)
2 mm
-
HBW (Half bandwidth)
5nm
-
CWL (Central Wavelength)
394 nm
-
AR-Coating
dielectrically coated, planeoptically polished
-
Special Features
only for photographic use behind another solar filter
-
Filter Usage
Solar
-
Filter Mounted
Mounted (LPFC 6mm)
-
Type Of Filter
Narrowband
-
Filter Shape
round
Specs
- Telescope filter typeSolar Telescope Filter
- Thread size1.25 in
- BrandBaader Planetarium
- ColorBlack
- Has written warrantyNo
- Piece count1
Current price is USD$335.00
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives by Wed, May 27
|Sold and shipped by Adorama
4.3499742665980445 stars out of 5, based on 1943 seller reviews(4.3)1943 seller reviews
Free 30-day returns
Similar items you might like
Based on what customers bought
Baader Planetarium Semi-APO Filter 2" $190.00
$19000current price $190.00Baader Planetarium Semi-APO Filter 2"
Baader Planetarium Premium Six-Piece Color Filter Set, 2" Eyepiece $447.00
$44700current price $447.00Baader Planetarium Premium Six-Piece Color Filter Set, 2" Eyepiece
46.5mm Solar Filter Sun Film Membrane Lens For Astronomical Telescope A4O0 $5.89
$589current price $5.8946.5mm Solar Filter Sun Film Membrane Lens For Astronomical Telescope A4O0
ELAYARD Easy Install Black Telescope Filter Cover for Enhanced Definition and Light Reduction $8.96
$896current price $8.96ELAYARD Easy Install Black Telescope Filter Cover for Enhanced Definition and Light Reduction
Apooke 1.25" Moon Filter Capture Clear Details Aluminum Frame Light Pollution Filter for Telescope Eyepieces Solar Observation $9.60
$960current price $9.60Apooke 1.25" Moon Filter Capture Clear Details Aluminum Frame Light Pollution Filter for Telescope Eyepieces Solar Observation
Telescope Filter Moon Filter for Astronomy Telescope Eyepiece Standard 1.25 inches Filter Accessories Optical Glass $10.23
$1023current price $10.23Telescope Filter Moon Filter for Astronomy Telescope Eyepiece Standard 1.25 inches Filter Accessories Optical Glass
Nebula Filter for Celestron Origin $219.00
$21900current price $219.00Nebula Filter for Celestron Origin
Enhances Planet Observations with UHC Filter for 1.25" Telescopes and Improve Picture Contrast Good Parallelism $16.17
$1617current price $16.17Enhances Planet Observations with UHC Filter for 1.25" Telescopes and Improve Picture Contrast Good Parallelism
Ciwanning 2in Aluminum Frame Filter Telescopes Eyepiece Filter 6 Color Option Astronomical Telescopes Accessory Moon $10.89 Was $12.32
6 optionsAvailable in additional 6 options$1089current price $10.89, Was $12.32$12.32Ciwanning 2in Aluminum Frame Filter Telescopes Eyepiece Filter 6 Color Option Astronomical Telescopes Accessory Moon
Baader Planetarium SC Deluxe 2" Eye Piece & Filter Holder for a Visual Back $115.77
$11577current price $115.77Baader Planetarium SC Deluxe 2" Eye Piece & Filter Holder for a Visual Back
Baader Planetarium 140mm AstroSolar Telescope Filter $131.75
$13175current price $131.75Baader Planetarium 140mm AstroSolar Telescope Filter
'' Compartments Several Color Filters Wheel W / 1x Fog Filter For s $36.99
$3699current price $36.99'' Compartments Several Color Filters Wheel W / 1x Fog Filter For s
Astronomical Telescope Composite Film Filter Solar Film for Watching Solar Eclipse Sunspot Filter TelescopeAccessories D $24.32
$2432current price $24.32Astronomical Telescope Composite Film Filter Solar Film for Watching Solar Eclipse Sunspot Filter TelescopeAccessories D
8 * 1.25Inch Telescope Filter-Black $16.17
$1617current price $16.178 * 1.25Inch Telescope Filter-Black
Lerpwige Upgraded Chelsea Filter for Gem Identification Green-Stones Compact $18.57
$1857current price $18.57Lerpwige Upgraded Chelsea Filter for Gem Identification Green-Stones Compact
Solar Filter Film, Sturdy Telescope Solar Filter Durable For Eclipse Watching For Astronomer For 127SLT $18.46
$1846current price $18.46Solar Filter Film, Sturdy Telescope Solar Filter Durable For Eclipse Watching For Astronomer For 127SLT
15 out of 5 Stars. 1 reviews2PCS Yellow Filter for LED Head Light Lamp Dental Loupes Useful Lab Illumination Optical Binocular Magnifier Accessories,2x filter $8.59
$859current price $8.592PCS Yellow Filter for LED Head Light Lamp Dental Loupes Useful Lab Illumination Optical Binocular Magnifier Accessories,2x filter
Reproduce Stunning Nebula Details Telescopes Uhc Filter For Enhanced Contrast Fangkenuo $20.88
$2088current price $20.88Reproduce Stunning Nebula Details Telescopes Uhc Filter For Enhanced Contrast Fangkenuo
Unistellar Smart Solar Filter $199.00 Was $249.00
$19900current price $199.00, Was $249.00$249.00Unistellar Smart Solar Filter
45 out of 5 Stars. 4 reviewsVaonis Solar Filter for Vespera Telescope $190.96
$19096current price $190.96Vaonis Solar Filter for Vespera Telescope
About this item
Product details
Take your solar imaging to the next level with the Calcium Gen-II 1.25" Unstacked Ca-K Solar Imaging Filter with LPFC. This advanced filter allows you to explore the fascinating boundary region between the sun's photosphere, visible in white light, and the chromosphere, typically observed with narrow-band H-alpha filters. With the Calcium Gen-II filter, you can observe not only familiar white light structures like sunspots, but also the chromospheric network that covers the sun's entire surface. This network is a precursor to sunspot formation and is accompanied by supergranulation cells and Ellerman Bombs. The filter operates at the emission line of calcium at 394 nm, which is in the near UV spectrum. As such, it's crucial to remember that this filter is designed for camera use only, as the human eye is not equipped to safely handle UV radiation. For optimal results, we recommend using this filter with a monochrome camera and mirror telescopes. While many lens telescopes can still be used for calcium observations, unmodified DSLRs may require significantly longer exposure times. All calcium filters necessitate an additional solar filter. The Baader GEN-II package includes a sheet of AstroSolar Photo Film OD 3.8, 20x30 cm (#2459278) to construct your own solar filter, allowing you to start observing without the need for additional purchases. The Calcium Gen-II filter supersedes the older K-Line Filter 1 1/4" (stacked) # 2458355. Thanks to modern manufacturing techniques, this single filter provides superior quality and a narrower half-band width (FWHM) of only 5 nm, eliminating the need for filter stacking. The low-profile filter mount is only 6 mm high when screwed in, making it compatible with standard filter wheels/drawers. For cameras with a 2"-nosepiece, the filter can be used with a filter drawer like the Baader UFC System or a filter wheel. The Baader Calcium GEN-II boasts all the benefits of the new generation of CMOS-optimized Baader filters, including increased contrast, Reflex-Blocker coatings for maximum halo freedom, identical filter thickness for parfocality, blackened edges for reflection elimination, individually coated filters with sealed coating edges, and Life-Coat for a durable, non-aging coating. In summary, the Calcium Gen-II 1.25" Unstacked Ca-K Solar Imaging Filter with LPFC is a powerful tool for any solar imaging enthusiast, offering a unique perspective on our sun's complex and captivating features.
- The calcium GEN-II filter lets you observe the interesting border region between the photosphere, which is visible in white light, and the chromosphere of the sun, which is reserved for narrow-band H-alpha filters. In addition to the structures known from white light, such as sunspots, you can see the chromospheric network distributed over the entire surface of the sun, which precedes the formation of sunspots, as well as cells of supergranulation and Ellerman Bombs.
The emission line of calcium at 394 nm is already in the near UV. That's why observing the sun at this wavelength is only possible with a camera! Never use this filter for visual observations, as our eye is blind for the harmful UV-radiation, but can be damaged by it.
This filter delivers the best results when used with a monochrome camera (which is more sensitive in this part of the spectrum than a color camera) and mirror telescopes (because especially refractors with fast f/ratios are not optimized for best sharpness in this part of the spectrum). Nevertheless, many lens telescopes still work fine for calcium observations; unmodified DSLRs may need extremely long exposure times.
All calcium-filters require an additional solar filter in front of them. Part of the Baader GEN-II is a sheet of AstroSolar Photo Film OD 3.8, 20x30 cm (#2459278) to build a solar filter by yourself, so that you can start observing without purchasing any other filters. Of course, you can also use one of the BDSF: Baader Digital Solar Filter OD 3.8 (80mm - 280mm) which are already mounted in a filter cell. On suitable lens telescopes, you can also use a Herschel prism. That way, you can replace the integrated ND3-filter mounted behind the Herschel with a weaker filter to reach shorter exposure times. These filters are already in the scope of delivery of the Baader Safety CoolCeramic Herschel Prism 2" Photographic (#2956510P)
The calcium GEN-II replaces the older K-Line Filter 1 1/4" (stacked) # 2458355. Thanks to modern manufacturing techniques, a single filter now achieves a better quality and narrower half-band width (FWHM) of only 5 nm instead of the previous 8 nm; stacking two filters is now no longer necessary. This also makes it possible to use the filter in standard filter wheels/drawers; the low-profile filter mount is only 6 mm high when screwed in.
To use the 1 1/4"-filter at cameras with 2"-nosepiece, you can use either use a filter drawer like the Baader UFC System or a filter wheel. You can always use the filter thread of many barlow lenses as well as 1 1/4" nose pieces like Baader 1 1/4" T-2 nosepiece with Safety Kerfs (#2458106) . -
Filter Size
1 25"
-
Transmission Range
CaK-II
-
Filter Thickness (Without Cell)
2 mm
-
HBW (Half bandwidth)
5nm
-
CWL (Central Wavelength)
394 nm
-
AR-Coating
dielectrically coated, planeoptically polished
-
Special Features
only for photographic use behind another solar filter
-
Filter Usage
Solar
-
Filter Mounted
Mounted (LPFC 6mm)
-
Type Of Filter
Narrowband
-
Filter Shape
round
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Telescope filter type
Solar Telescope Filter
Compatibility
monochrome camera, mirror telescopes, lens telescopes, unmodified DSLRs, Baader UFC System, filter wheel, barlow lenses, 1 1/4" nose pieces like Baader 1 1/4" T-2 nosepiece with Safety Kerfs (#2458106), BDSF: Baader Digital Solar Filter OD 3.8 (80mm - 280mm), Baader Safety CoolCeramic Herschel Prism 2" Photographic (#2956510P)
Thread size
1.25 in
Brand
Baader Planetarium
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
