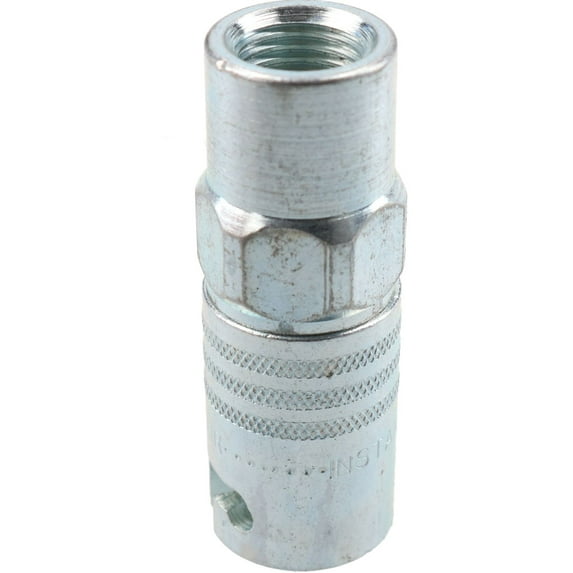

PCL Instant Air Coupler 1/4" BSP Female Thread Air Hose Fitting Coupling AC51CF

These InstantAir Adaptors are suitable for most fixed compressed air applications, although swivel adaptors are recommended for trailing hose applications.

The Broomwade InstantAir Steel Swivel Adaptors business was acquired by PCL in 2001 and these couplings and adaptors are now manufactured to the same quality and standard in Sheffield by PCL.

Specifications:

Nominal bore: 5.6mm

Maximum Working Pressure (static and random rotation): 17bar

Maximum Working Pressure (under continuous rotation): 10bar

Bayonet type couplings, preventing accidental disconnection

Range of swivel or non-swivel adaptors

Description: InstantAir Series

Temperature Range: -20 C to 80 C

Material: Steel

Max Flow Rate: 54 cfm @ 100 psi

Maximum Vacuum: 660mm (26in) Hg

Maximum Axial Pull: 114kg

Air Inlet: 1/4" BSP

Thread Type: Female

Genuine PCL: AC51CF

Made in Sheffield UK

Interchangeability

Broomwade
