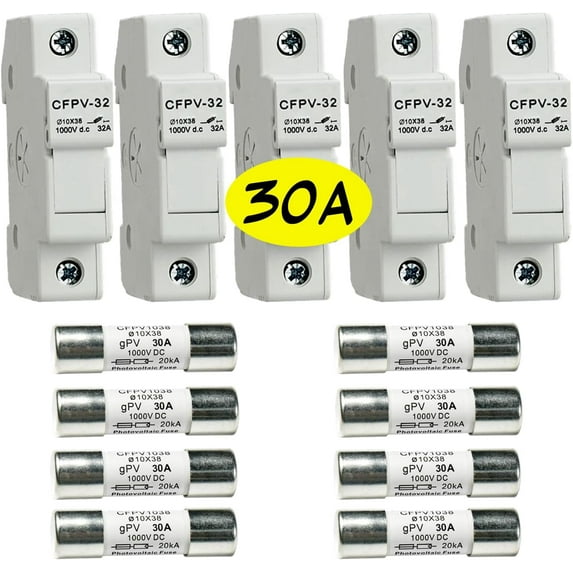

HQRP Combo: 5-Pack Solar PV CFPV-32 DIN Rail Fuse Holder, 1-32Amp, 1000VDC and 8-Pack Photovoltaic Fast Acting Fuse Links CFPV-1038, gPV Type, 30 Amp 1000V DC, 10x38mm, 20kA IR, Solar PV Ceramic Fuses

CFPV-1038 30 A solar PV fuse specifications: Current: 30A, Voltage: 1000VDC, Braking capacity: 20kA, Time constant: 1-3ms, Dimensions: 0,4'' x 1,5'' (10 x 38 mm), Body material: high-strength ceramic, Fuse link element: pure silver, Operating class: gPV, Size: midget, Approvals: UL Listed to 248-19, Guide JFGA, IEC 60269-6 (gPV), TÜV and CE certification, RoHS and REACH compliant. CFPV-32 1-32 A solar PV photovoltaic fuse holder specifications: Current: up to 32A, Voltage: 1000VDC, Braking capacity: 20kA, Dimensions: 3.15""x2.36""x0.71"" (80x60x18mm) Operating class: gPV, Mounting Type: DIN Rail, Approvals: UL Listed, IEC (gPV), TÜV and CE certification, RoHS and REACH compliant. The CFPV Solar Protection Fuse and fuse holder series has been specifically designed for the protection of photovoltaic (PV) systems. This family of Midget style fuses (10x38 mm) can safely protect PV (photovoltaic) modules and conductors from reverse overcurrent conditions. Also photovoltaic fuses are commonly used in photovoltaic power systems such as photovoltaic modules, photovoltaic inverters, solar charge controllers, solar lighting and other photovoltaic power systems to protect the safe operation of circuits and equipment. It is designed to work smoothly in outdoor and harsh environments that are prone to high temperature and humidity. Therefore, it is highly durable and reliable, ensuring a long lifespan. They are connected in series and parallel with photovoltaic panels and batteries to provide short-circuit protection for the charging and converter systems.
