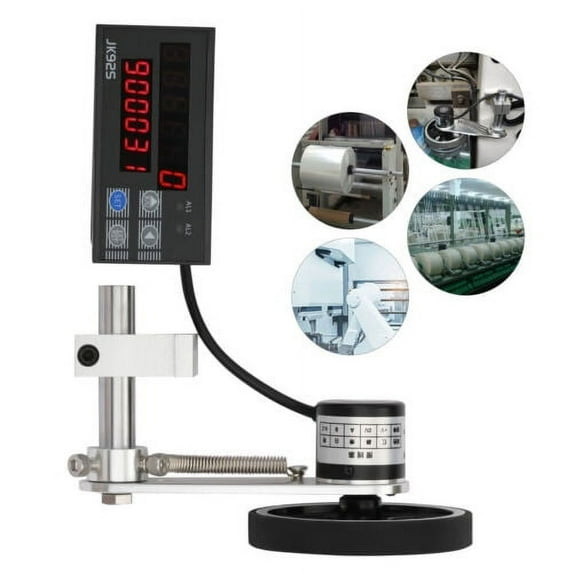

Rolling Wheel Electronic Digital Meter Counter Length Measure Tool &Encoder 110V

Digital Length Meter Counter Mechanical Length Counter Single Measure 110v New

Description

Are You Still Using a Traditional Tape Measure for Measuring Length? Then You Cannot Miss This Meter Counter. It Helps You to Measure the Length of a Roll of Cloth or a Tube Quickly and Easily. It Counts up to 999,999m/3280837ft, Making It an Ideal Working Tool for Industries That Need to Measure Large Lengths.

Details

Heat Dissipation Holes: the Heat Dissipation Holes on the Machine Dissipates Heat Quickly and Safely Without Burning the Machine, Making the Meter Work More Stable and Long-lasting.

Smooth Surface: the Surface of the Instrument Is Smooth Without Burrs. the Cloth Will Not Be Scratched During the Measurement, and It Is Easy to Clean After Use.

Sensitive Buttons: the Buttons of the Meter Counter Are Touch-sensitive and Responsive, Giving You a Good and Comfortable Working Experience.

Wheel Sensor: the Wheel of the Sensor Is Made of Rubber, Which Has High Strength and Is Wear-resistant and Anti-skid. the Wheel Will Not Easily Shift When Working, Which Ensures Measurement Accuracy. the Forward Rotation Means to Increase the Length, and the Reverse Rotation Is to Reduce the Length.

Application

It Is Suitable for Measuring the Length of Wire, Pipe, Plate, Cloth, Film, Edge Banding Machine, Rolling Machine, and Conveyor Belt. It Is Suitable for Paper Making, Printing, Textile, Rubber, Plastic, Wire, and Cable Industries.

3 Counting Modes

• Regular Meter Counting: the Top Row Shows the Actual Meter Count and the Bottom Row Shows the Preset Count. You Can Choose Between Automatic or Manual Reset and Cycle Counting When the Count Reaches the Preset Value and the Relay Outputs.
• Total Meter Counting: the Upper Row Shows the Current Value, and the Lower Row Shows the Totalized Value. When the Count Reaches the Preset Value, the Upper Row Can Be Reset Automatically or Manually, and the Lower Row Is Always Added up to the Total.
• Batch Counting: the Upper Row Shows the Current Count, and the Lower Row Shows the Number of Batches. When the Upper Row Count Reaches the Preset Value, You Can Choose Between Automatic or Manual Reset and the Lower Row Batch Count Will Be Added by 1.

Specification

Voltage: 110v

Color: Black

Measurement Unit: Feet, Inches, Meters, Yards

Material: Plastic, Aluminium Alloy, Rubber

Plug Type: Us Plug

Measuring Range: 0-999999m/3280837ft

Gross Weight: 1.2kg/2.65lbs

Product Size: 9.6*7.2*4.8cm/3.78*2.83*1.89in

Package Size: 19.5*10.5*13.5cm/7.68*4.13*5.32inch

Package Included

1 X Meter Counter

1 X Wheel Sensor

1 X Aluminum Alloy Bracket

1 X Encoder

All Accessories for Installation

Notes

• Please Note That the Alarm (Not Included) Needs to Be Purchased by Yourself.
• Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before Ordering.
