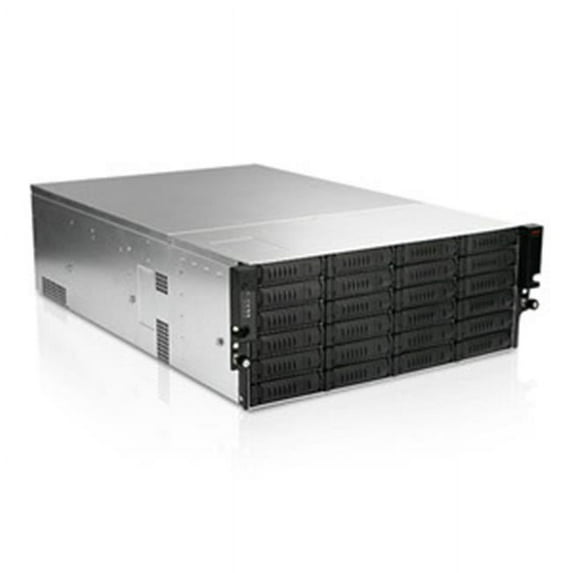

iStarUSA EX4M36-EXP 36-Bay Storage Server Rack Mount Chassis With Sas Expander

The EX storage server series rack mount not only has the stylish appearance. but the functionality and Flexibility make E x series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution. we have taken a step forward to prepare the migration of new technology and provide the Mini SAS backplane to support both latest SAS and SATA hard drives. and also provide redundant power supply to ensure total up time of mission critical server applications.

• Fiber Optical Drive Tray Status Indicator
• Fully RoHS Compliance
• Power + LAN + HDD LED Indicator
• 6Gb/s SAS expander (SFF - 8087) with SGPIO
• Support EATX Motherboard
• Supports Both SAS/SATA Hard Drives
• Sliding Rails Included
• Equipped with 3 x 120 mm. and 3 x 80 mm. PWM Fans

• Form factor - 4 U
• Standard Drive Bays - 2.5 in. Drive (internal) - 2. Hot swap 3.5 in. - 36
• Hot swap HDD Type - 3.5 in. SAS I/II & SATA I/II/III
• Indicators - Power. HDD. LAN
• Switches - Power. Reset
• Expansion Slots - 7 (Low profile)
• Material of Main Chassis - Heavy - duty SGCC Cold - rolled Steel
• Cooling Fan - 3 x 80 mm. 3 x 120 mm.
• Color of Main Chassis - Black
• Dimension - 26.73 D x 19 W x 7 H in.
