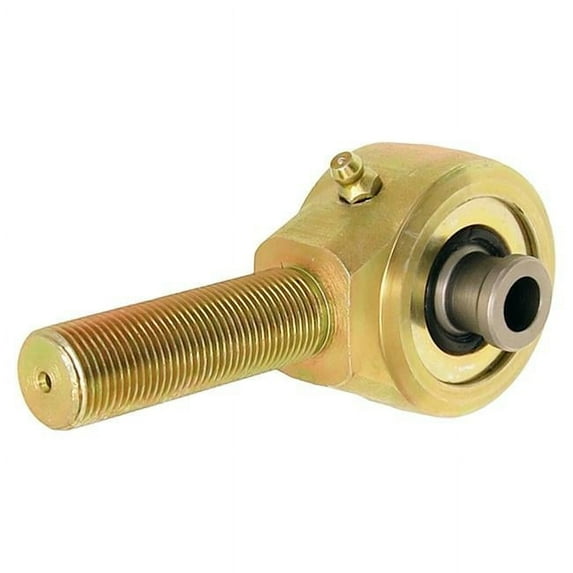

Narrow Forged Johnny Joint Bar Rod End Body

's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2" diameter, fitted with a zerk fitting for greasing, 2 1/4" of 3/4"-16 left hand threads on the shank, and a 1.850" mounting width ball with a .562" thru bolt hole. Finished in gold zinc plating.

• Country of Origin: United States of America
