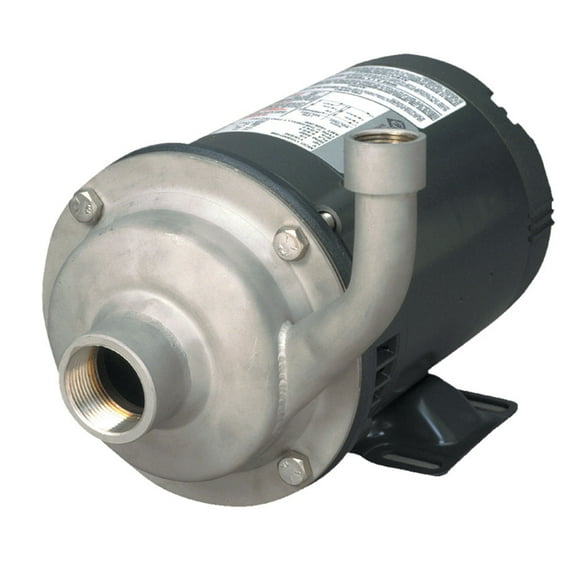

AMT QSP-5471-98 High Volume, Straight Centrifugal Pump

AMT QSP-5471-98 1 1/4" x 3/4" High Volume 300 Series Stainless Steel Straight Centrifugal Pump, Viton Seal, 3/4 HP TEFC (Totally Enclosed, Fan Cooled), 1 Phase, 115/230 VAC/60 Hz, 9/5 Full Load Amps, 56J Fram Motor. AMT 300 Series Stainless Steel Solids Handling End Suction Centrifugal Pump are designed for continuous duty high flow and high Pressure applications including: chemical process, liquid transfer, cooling, Pressure boosting, circulating, dirty water and applications requiring contaminant free pumping. Constructed of rugged deep drawn Stainless steel for durability and corrosion resistance. Investment cast Stainless steel closed impeller for enhanced performance, high efficiencies and handles a maximum of 1/8" diameter solids. All models include Viton Type 21 mechanical seals and O-rings which offer a broad range of chemical compatibility. Cast iron motor adapter provides a positive and rigid mounting to motor. Pump are not self-priming and require flooded suction. Stainless Steel Construction; Viton Mechanical Seal and O-ring, Optional Buna-N Seal and O-ring Available; Investment Cast Stainless Steel Impeller; Cast Iron Motor Adapter Provides Rigid Mounting; AeroSpace Fusion Welding; Stainless Steel Motor Shaft & Hardware;Single Phase Motor Features Automatic Thermal Overload Protection; NEMA Base Mounted Motors; Maximum Maximum Flow 156 GPM; Working Pressure 150 PSI; Maximum Head 130 Ft; Chemical Resistant Design; Discharge Port Rotates in 90 Degree Increments; Maximum Temperature 200 F; NOTE: Dimensions are in inches and have a tolerance of +/- 1/4". NOTE: Electric supply for ALL motors must be within +/-10% of nameplate voltage rating (e.g. 230V +/-10%= 207 to 253).
