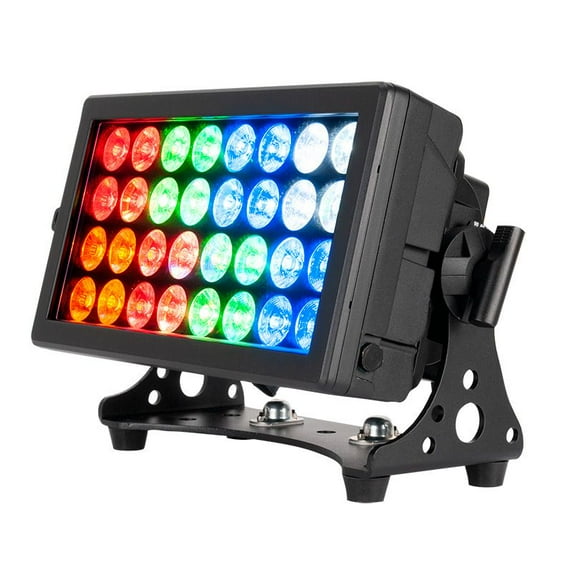

American DJ 32 HEX PANEL IP RGBAW+UV LED DMX Outdoor Wash/Blinder/Strobe Light

What's In The Box:

American DJ 32 HEX PANEL RGBAW+UV DMX Outdoor Wash/Blinder/Strobe Effect LightRemovable frost filter with metal frameIP65 locking power cableTwo Safety cables

Description:

The ADJ 32 HEX Panel IP is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 - RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.

On the rear panel it features IP65 Locking 5-pin XLR, DMX In/Out connections, and IP65 Locking Power In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

The 32 HEX Panel IP is flicker free for film and broadcast, and has multiple DMX control modes, dim modes, and selectable gamma and LED refresh rate settings.

Features:

IP65 rated - protects from dust, sand, moister, waterAll metal construction with black housingIncludes heavy duty bracketSure-lock locking bracket system (securely locks every 10-degrees)Includes magnetic removable filter frame to add a diffusion filterFlicker free for film and broadcastLinear variable white temperature control

Specifications:

LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)Beam Angle: 24-degreesLUX: 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)Display: OLED display with function buttonsData In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring ApplicationsMultiple DMX channel modes8 individually controlled sections with Pixel Zone Control0-100% Dimming + smooth 16-bit Dimming5 Dimming Curve ModesControl Mode: DMX512, RDM (Remote Device Management)Gamma Brightness: Multiple settingsLED Refresh Rate: Multiple settingsWith Wired Digital Communication NetworkPower voltage: AC100-240V, 50/60Hz (Multi-voltage)Daisy chain up to 3 fixtures max (@ 120V); 6 fixtures max (@ 230V)Power consumption: 220W MaxcETLus Approved (Control #4010765)Dimension: 13.75"x 9" x 6.75" / 350x230x170mmWeight: 24.25 lbs. / 11kg.CE Certified
