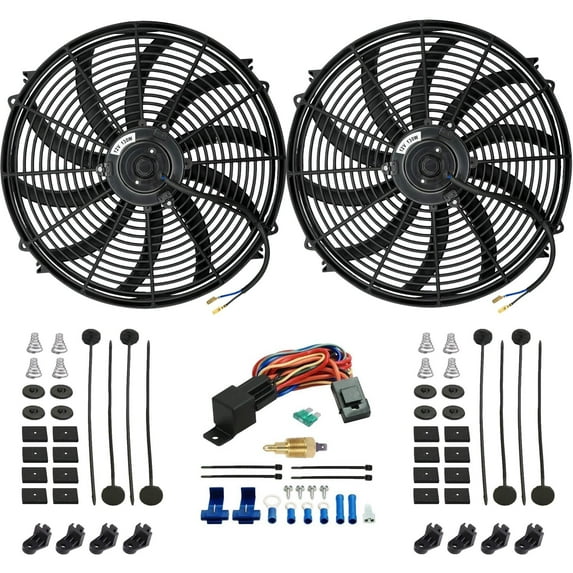

Dual 16-17 Inch 130w Electric Radiator Fans Grounding Thermostat Switch Kit

Electric Fan:

• Universal 12v high performance 16" inch electric radiator cooling fan.
• Upgraded 130 watt motor draws 12 amps, producing over 2852 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 16.75" x 16" x 3.2" thickness at center and 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal single pin electric cooling fan grounding thermostat switch.
• Standard NPT sized solid brass thread-in temperature probe sensor.
• Preset to power fan or 12v accessory at the selected temperature.
• Threads into block port, radiator, engine cooler or tapped hose line.
• Measures temp of any liquid including oil, water and coolant fluid.
