Hero image 0 of 5.6" Dia. Direct Drive Motor HP Range 3/4"-1/5" 115V 1075 RPM 1/2x5" Shaft 5470, 0 of 5

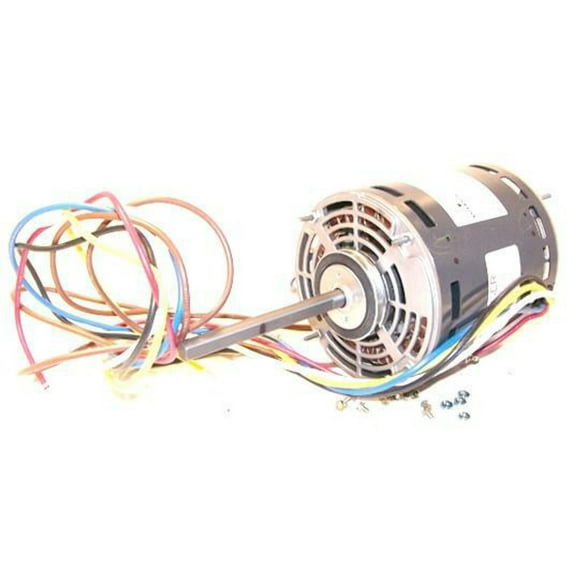

5.6" Dia. Direct Drive Motor HP Range 3/4"-1/5" 115V 1075 RPM 1/2x5" Shaft 5470
(No ratings yet)
Key item features
- Direct Drive Fan & Blower Motor | PSC | 3/4–1/5 HP | 115V | 1075 RPM | Part #5470 Upgrade your HVAC system with this brand-new permanent split capacitor (PSC) direct drive fan and blower motor, part #5470. Engineered for both residential and commercial use, this motor features a compact 5.6" diameter, open air over (OAO) enclosure, and reversible rotation for flexible installation. Designed for continuous duty operation, it includes 2.5" hub rings and Rheem-compatible shell holes for easy mounting. ⚙️ Product Specifications:
- Electrical Type: Permanent Split Capacitor (PSC)
- ⚡ Voltage: 115V
- Horsepower Range: 3/4 to 1/5 HP
- Speeds: 4-speed operation
- Rotation: Reversible
- Motor Diameter: 5.6"
- Shaft Type & Size: N-type, 1/2" x 5"
- Shell Type & Size: XL, 6.1"
- ️ Insulation Class: Class B
- Enclosure: Open Air Over (OAO)
- Mounting: All-angle mount with 2.5" hub rings
- Shell Holes: Includes 4 holes for Rheem mount compatibility
- ️ Overload Protection: Automatic reset thermal protector
- Leads: 24 leads for versatile wiring
- ⚙️ Bearings: All-angle thrust system
- Capacitor: Designed for use with 370V capacitors (not included)
- Amps: 8.1A
- RPM: 1075 ️ Installation Tips:
- Disconnect power before servicing or installing the motor
- Confirm mounting orientation and bracket compatibility
- Use included hub rings and shell holes for secure installation
- Connect leads according to motor diagram and capacitor rating
- Test rotation direction and airflow before final assembly
- Ensure shaft alignment and clearance for fan blades or blower wheels
Specs
- Replacement inducer blower motor typeDirect Drive
- Model5470
- Volts115 VAC
- Maximum rpm1075 rpm
- BrandNidec Motor Corporation
- Height16 in
Current price is USDNow $221.22
You save $52.77
was $273.99$273.99
You save$52.77
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Thu, Apr 9
|
Sold and shipped by Seneca River Trading, Inc.|Pro Seller
4.529817304377801 stars out of 5, based on 2901 seller reviews(4.5)2901 seller reviews
Free 30-day returns
More seller options (1)
Starting from $221.21
Similar items you might like
Based on what customers bought
VEVOR 1/2HP Furnace Blower Motor 1720RPM, 115V 7.1A Belt Drive Blower Motor Single Phase - 0.5" Shaft Diameter, 1.6" Shaft Length, CW/CCW Rotation $142.99
Sponsored$14299current price $142.99VEVOR 1/2HP Furnace Blower Motor 1720RPM, 115V 7.1A Belt Drive Blower Motor Single Phase - 0.5" Shaft Diameter, 1.6" Shaft Length, CW/CCW Rotation
Shipping, arrives in 3+ daysA.O. Smith FDL6001A Blower Motor - 1/2-1/6 HP, 1075 RPM, 4 Speed, 115V Direct Drive - Sleeve Bearing, 48Y Frame for HVAC & Fan Applications $128.53
$12853current price $128.53A.O. Smith FDL6001A Blower Motor - 1/2-1/6 HP, 1075 RPM, 4 Speed, 115V Direct Drive - Sleeve Bearing, 48Y Frame for HVAC & Fan Applications
Century Motor,1/3 HP,1075 rpm,48Y,115V OLE1036A $262.98
$26298current price $262.98Century Motor,1/3 HP,1075 rpm,48Y,115V OLE1036A
Fasco Round OEM Blower, 3000 RPM, 1 Phase, Direct, Plastic 1 Speed A067 $197.96
$19796current price $197.96Fasco Round OEM Blower, 3000 RPM, 1 Phase, Direct, Plastic 1 Speed A067
15 out of 5 Stars. 1 reviewsFasco HVAC Motor,1/25 HP,1550 rpm,115V,3.3 D332 $245.44
$24544current price $245.44Fasco HVAC Motor,1/25 HP,1550 rpm,115V,3.3 D332
15 out of 5 Stars. 1 reviewsFasco HVAC Motor,1/40-1/50-1/80 HP,115V,CCW/LE D128 $145.92
$14592current price $145.92Fasco HVAC Motor,1/40-1/50-1/80 HP,115V,CCW/LE D128
GF2024 FAN MOTOR (SELF COOLED) 115V 1/4HP 1725RPM - EXACT FIT FOR A. O. SMITH - REPLACEMENT PART BY NBK $151.18
$15118current price $151.18GF2024 FAN MOTOR (SELF COOLED) 115V 1/4HP 1725RPM - EXACT FIT FOR A. O. SMITH - REPLACEMENT PART BY NBK
Fasco Motor,1/20 HP,1550 rpm,3.3,208-230V D1121 $155.00
$15500current price $155.00Fasco Motor,1/20 HP,1550 rpm,3.3,208-230V D1121
U.S. Motors 8200 $180.75 Was $244.99
$18075current price $180.75, Was $244.99$244.99U.S. Motors 8200
11 out of 5 Stars. 1 reviews1/2HP Furnace Blower Motor 1720RPM 115V 7.1A 0.78" Shaft Length CW/CCW Rotation 1/2 hp $158.97
$15897current price $158.971/2HP Furnace Blower Motor 1720RPM 115V 7.1A 0.78" Shaft Length CW/CCW Rotation 1/2 hp
Blower Motor 1/3 HP 4 Speed 6 pl Replaces 0131F000 $103.53 Was $115.33
$10353current price $103.53, Was $115.33$115.33Blower Motor 1/3 HP 4 Speed 6 pl Replaces 0131F000
U.S. Motors Belt Drive Motor,1/2"dia.,Auto,1/4Hp PD6002 $185.52
$18552current price $185.52U.S. Motors Belt Drive Motor,1/2"dia.,Auto,1/4Hp PD6002
GENTEQ 1/3 HP 5KCP39LG BLOWER MOTOR 200-230V 950 RPM 1PH $88.99
$8899current price $88.99GENTEQ 1/3 HP 5KCP39LG BLOWER MOTOR 200-230V 950 RPM 1PH
D721 5.6" Direct Drive Blower Motor - 1/4 HP 115V 1075 RPM 3 Speed PSC Motor for Furnaces & AC Units - Reversible Rotation, Sleeve Bearing $156.00
$15600current price $156.00D721 5.6" Direct Drive Blower Motor - 1/4 HP 115V 1075 RPM 3 Speed PSC Motor for Furnaces & AC Units - Reversible Rotation, Sleeve Bearing
Marathon Motors MS126 S126 1/4 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor $200.77
$20077current price $200.77Marathon Motors MS126 S126 1/4 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor
FM1026 5-5/8 In. Diameter Fleximount Indoor Blower Motor 1/4 HP $238.68
$23868current price $238.68FM1026 5-5/8 In. Diameter Fleximount Indoor Blower Motor 1/4 HP
3 out of 5 Stars. null reviewsDayton Rectangular OEM Blower, 3200 RPM, 1 Phase, Direct Drive, Steel 1TDU7 $194.34
$19434current price $194.34Dayton Rectangular OEM Blower, 3200 RPM, 1 Phase, Direct Drive, Steel 1TDU7
Diversitech WG840586 - Wagner WG840586 Direct Drive Furnace Blower Motor 1/3hp, 1075/3 RPM, 2.9FLA, 208-230V $135.30
$13530current price $135.30Diversitech WG840586 - Wagner WG840586 Direct Drive Furnace Blower Motor 1/3hp, 1075/3 RPM, 2.9FLA, 208-230V
Fasco Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed A200 $135.99
$13599current price $135.99Fasco Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed A200
15 out of 5 Stars. 1 reviewsKFFKFF 1/4HP Furnace Blower Motor 1725RPM, 115V 5.2A Belt Drive Motor Single Phase - 0.39" Shaft Diameter, 0.78" Shaft Length, CW/CCW Rotation $134.99
$13499current price $134.99KFFKFF 1/4HP Furnace Blower Motor 1725RPM, 115V 5.2A Belt Drive Motor Single Phase - 0.39" Shaft Diameter, 0.78" Shaft Length, CW/CCW Rotation
About this item
Product details
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 8.1 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
- Direct Drive Fan & Blower Motor | PSC | 3/4–1/5 HP | 115V | 1075 RPM | Part #5470 Upgrade your HVAC system with this brand-new permanent split capacitor (PSC) direct drive fan and blower motor, part #5470. Engineered for both residential and commercial use, this motor features a compact 5.6" diameter, open air over (OAO) enclosure, and reversible rotation for flexible installation. Designed for continuous duty operation, it includes 2.5" hub rings and Rheem-compatible shell holes for easy mounting. ⚙️ Product Specifications:
- Electrical Type: Permanent Split Capacitor (PSC)
- ⚡ Voltage: 115V
- Horsepower Range: 3/4 to 1/5 HP
- Speeds: 4-speed operation
- Rotation: Reversible
- Motor Diameter: 5.6"
- Shaft Type & Size: N-type, 1/2" x 5"
- Shell Type & Size: XL, 6.1"
- ️ Insulation Class: Class B
- Enclosure: Open Air Over (OAO)
- Mounting: All-angle mount with 2.5" hub rings
- Shell Holes: Includes 4 holes for Rheem mount compatibility
- ️ Overload Protection: Automatic reset thermal protector
- Leads: 24 leads for versatile wiring
- ⚙️ Bearings: All-angle thrust system
- Capacitor: Designed for use with 370V capacitors (not included)
- Amps: 8.1A
- RPM: 1075 ️ Installation Tips:
- Disconnect power before servicing or installing the motor
- Confirm mounting orientation and bracket compatibility
- Use included hub rings and shell holes for secure installation
- Connect leads according to motor diagram and capacitor rating
- Test rotation direction and airflow before final assembly
- Ensure shaft alignment and clearance for fan blades or blower wheels
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Replacement inducer blower motor type
Direct Drive
Model
5470
Volts
115 VAC
Maximum rpm
1075 rpm
Warranty
