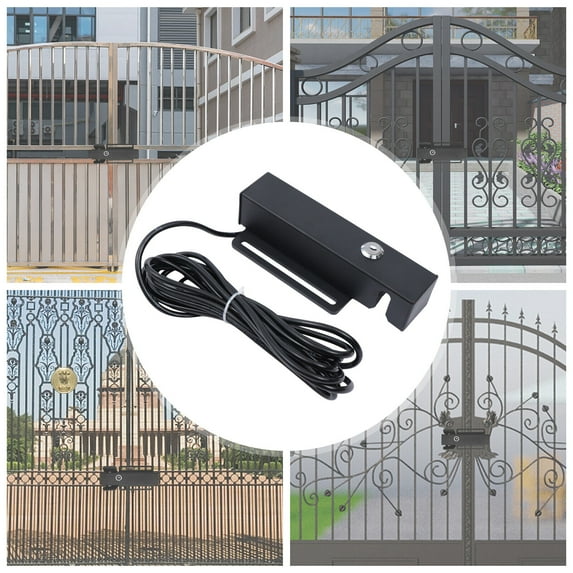

Automatic Electric Swing Gate Lock DC/AC12 - 24V

Key Features

Automatic Opening and Closing: This electric door lock automatically locks and unlocks the door when the door opener is activated without having to push the door manually, which is labor-saving and smart.

High-quality Material: This electric door lock is made of high-quality galvanized iron, which is very strong and durable. And the corrosion-resistant, rust-proof galvanized iron extends the life of the product.

Excellent Performance: This electric door lock is made of reinforced metal and superb craftsmanship to make it have excellent wind and water resistance, which can guard the door even in bad weather.

High Security: The electric door lock keeps your door tightly closed, adding security to your door opening system. The sturdy electric door lock can prevent thieves, burglars, etc. from entering your gate to safeguard your person and property.

Specification

Material: Galvanized Iron

Model: DS-02

Operating Voltage: DC/AC12-24V

Working Temperature: 0-45℃

Humidity: 0-95%

Color: Black

Static Current: 4mA±1mA

Operating Current: 50mA±2mA

Output Type: Dry Contact (Switching Action)

Delay Time Range: Min. Approx. 2S, Max. Approx. 6.5S

Gross Weight: 2.5kg/5.51lbs

Package Size: 26.5*18.5*6cm/10.43*7.28*2.36in

How to Install

STEP 1: Remove the front end of the actuator that is attached to the gate bracket with a clevis pin and clip pin. Tie or clamp the front of the gate with wire to support it. Please note that the front ends of both actuators need to be disconnected for dual gate systems.

STEP 2: Swing the gate to the closed position. Find the best position to mount the lock and the receiver. It must be level with the actuator. The lock should be mounted on a gate cross member or another solid part of the gate surface.

STEP 3: Position the lock in an approximate mounting position on a cross member or other mounting surface that is level with the actuator. The lock can be moved into an exact position later.

STEP 4: Find a location on the fence post level with the gate lock and temporarily tie the lock receiver provided. Slide the gate lock back and forth until it lines up with the receiver. The pin holes on the receiver must line up with the slot in the lock.

STEP 5: Drill through the marks on the post and attach the receiver with the mounting bolts, washers, and nuts that you have purchased.

STEP 6: The gate lock must now be permanently mounted to the gate cross member or gate surface. Make sure that the lock is aligned with the receiver and mark holes on the gate through the upper and lower slots on the lock.

STEP 7: Drill holes through the marks and attach the lock to the gate surface with the appropriate hardware. Do not use bolts greater than 5/16 inch diameter because they can't go through the slot.

STEP 8: Insert the clevis pin through the holes in the receiver and hammer the locking cap onto the bottom of the pin.

Package Included

1*Lock with a Power Cable

1*Lock Receiver

2*Keys

1*Clevis Pin

1*Plug Pin

1*Small Control Board

1*Gasket

1*English Manual

Notes

Please read the instructions for use carefully before use.

Electric locks improve the security of the gate and are highly recommended if you have animals or live in an area affected by strong winds or the gate is over 1.5 meters (7 feet).
