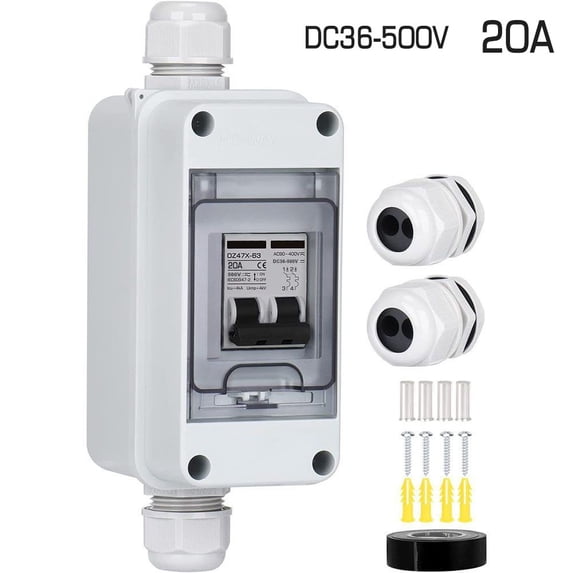

PV disconnector DC36-500V solar energy disconnector new waterproof box

Specifications:

High quality IP65 waterproof circuit breaker box can block rain and dust, making your electricity more safe and reliable

Arc extinguishing: DC arc extinguishing is more difficult than AC. The DC miniature circuit breaker has a magnetic system for auxiliary arc extinguishing.

It is widely used in grid connected solar panel systems, wind and solar hybrid systems and other DC circuit systems due to overload or short circuit caused by overcurrent damage.

features:

Rated working voltage: DC36-500V .

Shell: HT-3 (4-hole, suitable for thin cable

Cable gland diameter: 8.7MM x 2

Adapter cable: 7-5AWG | PV cable: 10-7AWG

Electrode: 2P

Waterproof and dustproof grade: IP65

Rated current: 6A ，10A ，16A， 20A ，25A ，32A， 40A ，50A ，63A ，80A ，100A ，125A

Breaking capacity: 4 kA Ics=Icu

Trip curve: B (3-5 I/In)

Electrical life: 4000 times

Mechanical life: 10000 times

Operating temperature: - 30 ° C to+70 ° C

Working altitude: 2000m

Protection - and+poles or AC 90~400V protection L and N poles

The package includes:

1 * Solar circuit breaker
