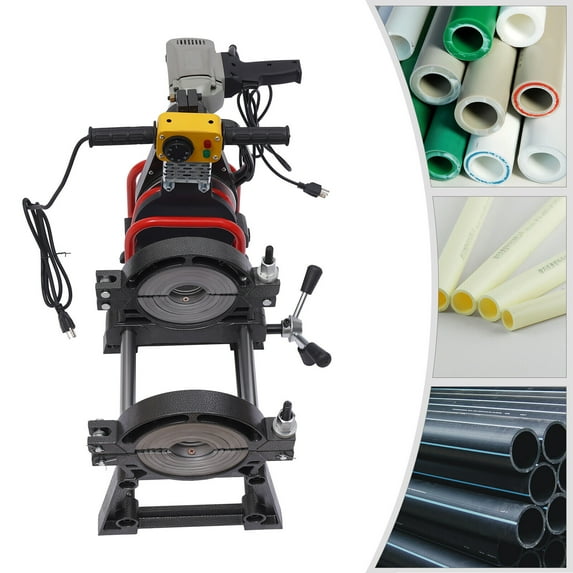

Pipe But Fusion Welder Manual PE HDPE Fitting Pipe Welding Machine 63-200mm

Description

Let this manually operated button fusion welding machine improve your welding efficiency! From cutting to welding, we will provide you with comprehensive services! And it is widely used to deal with pipes of various materials, and is your good helper for welding!


Details
Surface Treatment: The machine surface has been polished and painted to enhance its waterproof, rust-proof, and high-temperature resistance.
Fixed Nut: The metal nut has high strength and high wear resistance, and is not easy to wear the sliding wire, making the machine more durable.

Specifications

Model: 63-200
Color: Black
Material: Aluminum
Surface Treatment: Polishing and Painting
Processing Technology: Mold Pressing
Operation Mode: Manual
Materials Can Be Welded: PE, PP, PB, PVDF, HDPE, PVC
Welding Level(Φ, Mm) : Outer Dia 63mm(2.48”)、75mm(2.95”)、90 Mm (3.54”)、110 Mm (4.33”)、125 Mm (4.92”)、140 Mm (5.51”)、160 Mm (6.30”)、180 Mm (7.09”)、200Mm(7.87”)
Docking Deviation: ≤0.3mm/ 0.013in
Time Required To Reach Soldering Temperature: <20min
Plug: US Standard
Power Of Heater: 1.5Kw/110V
Power Of Milling Cutter: 1.1Kw/110V
Working Temperature: 0~280℃/ 32~536℉（The Actual Temperature Will Be Affected By The Environment）
Temperature Deviation:±5℃/ 41℉
Environment Temperature: -5±40℃/ 23±104℉
Product Size: 40*30*40cm/ 15.75*11.81*15.75in
Package Size: 46*40*46cm/ 18.11*15.75*18.11in
Gross Weight: 33kg/ 72.75lbs


Application
This manually operated butt fusion welding machine applies to the welding of PE, PP, PB, PVDF, HDPE, PVC pipes, and fittings.

Package Included

1* 200 Two-ring Rack
1* 200 Cutter
1* 200 Heating Plate
4* 63-180 Tiles
1* Basket
1* Screw for Tiles
1* Screwdriver
1* Wrench
1* English Manual

Notes

Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
