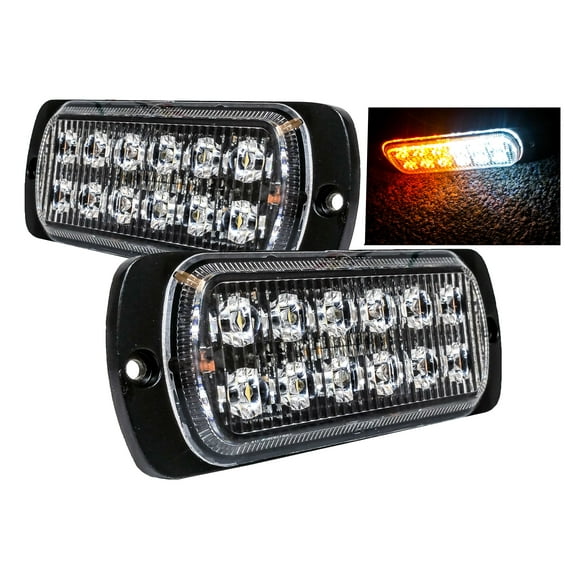

1 Pair 4.5" White Amber Dual Row 12-LED Surface Mount Warning Strobe Light Flasher Emergency Vehicle Tow Truck Trailer Van Construction Heavy Equipment 12v 24v

1 Pair 4.5" White Amber Dual Row 12-LED Surface Mount Warning Strobe Light Flasher Emergency Vehicle Tow Truck Trailer Van Construction Heavy Equipment 12v 24v

Application: Public Utility Vehicle, Tow Trucks, Emergency Vehicles, Snow Plower, Offroad Vehicles, Over-sized trailer, Construction vehicles, Heavy Equipment

Wire Diagram:
Red Wire - (+) Positive
Black Wire - (-) Ground
Yellow wire - For synchronization and change flash pattern (+)
Green Wire - For asynchronization.

Note for sychronizing 2 or more lights:
Connect all wires, red(+), black(-) and 2 yellow wire must be connected together.
After connecting all wires, (turn power on) touch and hold yellow wires to positive(+) for 3-4 seconds and all lights will go out for one(1) second and then turn back on.
They are now synchronized and every time you touch yellow wire to positive(+), it will change the flashing pattern on all lights.

Wiring 2 or more lights to "wig-wag" asynchronization:
Follow instructions for synchronizing and then attach one green wire to power(+) and lights will wig-wag back and forth. You can still change flashing pattern in this mode by touching yellow wire to positive(+).

Specifications:
Dimension: L: 4.5" W: 1.75" D: 0.375"
Voltage: 10-30 VDC
Base Material: Aluminum
Mount: Surface mount
Lens: Polycarbonate
Current Draw: 0.25A @ 12V / 0.12A @ 24V
Max Power: 6W
Waterproof Rate: IP67

Manufactured in China to OZ-USA®'s high end specifications. USA Shipping (California), USA Warranty: 1 year.
