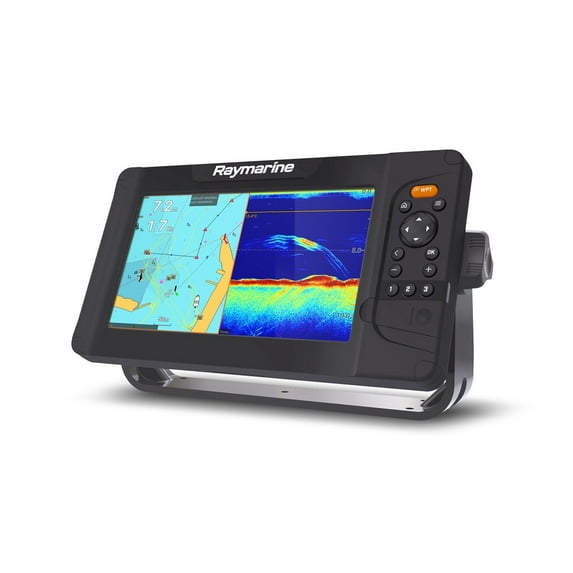

Hero image 0 of Raymarine Element 9S No Transducer Lighthouse North America Chart, 0 of 1

Raymarine Element 9S No Transducer Lighthouse North America Chart

(No ratings yet)

Key item features

Raymarine Element 9S Lighthouse NC3 USA with FHS
Model: E70533-00-102
class="wtul"> Category-leading quad-core processor delivers fast chart redraw and responsive performance Fast and accurate 10hz GPS/GNSS sensor Rugged design and backed by Raymarine’s three-year warranty (product registration required) Support for Raymarine LightHouse™ charts, Navionics, and C-MAP Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver Built-in High CHIRP sonar for depth and bottom contour imaging Map uncharted areas with Raymarine RealBathy™ personal sonar mapping Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating An oversized waypoint key for quick and easy marking of your favorite locations Three user-programmable quick keys to access your favorite pages with one button push Live menus let you customize charts while seeing the navigation display change in real time The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays. Specifications style='border-collapse: collapse' width='95%' border='1'>Display Size9.0" Optically Bonded LCDDisplay Resolution800 x 480 WVGADisplay TypeNon-TouchBrightness1,500 nitsW x H x D (mm)(11.3 x 6.3 x 2.4 inches)Product Weight (lbs)5.0Operating Temperature Range-25°C to + 55°C (-13°F to 131°F)Storage temperature range-30°C to +70°C (-22°F to 158°F)Voltage12V DC (8V to 16V DC)Power Consumption (max 12V DC)20 WattsGNSS / GPSBuilt-in GPS/GLONASSSonar Type (Built-in)Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducersSonar DepthCHIRP Sonar = 274m (900 feet)RadarQuantum wireless CHIRP compatible Wi-Fi only connectionDoppler RadarN/AMARPAN/ANMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkngRequires A06045 DeviceNet female (F) adapter cable - 400mmWi-FiWiFi - 802.11 b / g / nCartographyRaymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.Tides & CurrentsRequires LightHouse LNC2, Navionics or *C-MAPSonar MappingRaymarine RealBathy and Navionics SonarChart LiceWaypoint / Routes / Tracks5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk ptsExternal Memory1 x microSD slotsDimensions287 x 161 x 62mm What's in the Box: class="wtul"> Element display Surface mount gasket Suncover Trunnion knobs x2 Documentation pack Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut) Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead). Lighthouse NC3 microSD

Specs

Boat accessory type
Boat Accessories
Brand
Raymarine
Features
LED Lighting
Material
New
Size
9.0\"
Has written warranty
No

Current price is $750.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Sat, Apr 11

Sold and shipped by Orbital Satcom Corp

3.9166666666666665 stars out of 5, based on 12 seller reviews(3.9)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Raymarine Element 9S Lighthouse NC3 USA with FHS

Model: E70533-00-102

Category-leading quad-core processor delivers fast chart redraw and responsive performance
Fast and accurate 10hz GPS/GNSS sensor
Rugged design and backed by Raymarine’s three-year warranty (product registration required)
Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
Built-in High CHIRP sonar for depth and bottom contour imaging
Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
An oversized waypoint key for quick and easy marking of your favorite locations
Three user-programmable quick keys to access your favorite pages with one button push
Live menus let you customize charts while seeing the navigation display change in real time

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

Specifications

Display Size	9.0" Optically Bonded LCD
Display Resolution	800 x 480 WVGA
Display Type	Non-Touch
Brightness	1,500 nits
W x H x D (mm)	(11.3 x 6.3 x 2.4 inches)
Product Weight (lbs)	5.0
Operating Temperature Range	-25°C to + 55°C (-13°F to 131°F)
Storage temperature range	-30°C to +70°C (-22°F to 158°F)
Voltage	12V DC (8V to 16V DC)
Power Consumption (max 12V DC)	20 Watts
GNSS / GPS	Built-in GPS/GLONASS
Sonar Type (Built-in)	Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth	CHIRP Sonar = 274m (900 feet)
Radar	Quantum wireless CHIRP compatible Wi-Fi only connection
Doppler Radar	N/A
MARPA	N/A
NMEA2000	1 x NMEA2000 port (DeviceNet microC)
SeaTalkng	Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi	WiFi - 802.11 b / g / n
Cartography	Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents	Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping	Raymarine Real..

Raymarine Element 9S Lighthouse NC3 USA with FHS
Model: E70533-00-102
class="wtul"> Category-leading quad-core processor delivers fast chart redraw and responsive performance Fast and accurate 10hz GPS/GNSS sensor Rugged design and backed by Raymarine’s three-year warranty (product registration required) Support for Raymarine LightHouse™ charts, Navionics, and C-MAP Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver Built-in High CHIRP sonar for depth and bottom contour imaging Map uncharted areas with Raymarine RealBathy™ personal sonar mapping Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating An oversized waypoint key for quick and easy marking of your favorite locations Three user-programmable quick keys to access your favorite pages with one button push Live menus let you customize charts while seeing the navigation display change in real time The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays. Specifications style='border-collapse: collapse' width='95%' border='1'>Display Size9.0" Optically Bonded LCDDisplay Resolution800 x 480 WVGADisplay TypeNon-TouchBrightness1,500 nitsW x H x D (mm)(11.3 x 6.3 x 2.4 inches)Product Weight (lbs)5.0Operating Temperature Range-25°C to + 55°C (-13°F to 131°F)Storage temperature range-30°C to +70°C (-22°F to 158°F)Voltage12V DC (8V to 16V DC)Power Consumption (max 12V DC)20 WattsGNSS / GPSBuilt-in GPS/GLONASSSonar Type (Built-in)Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducersSonar DepthCHIRP Sonar = 274m (900 feet)RadarQuantum wireless CHIRP compatible Wi-Fi only connectionDoppler RadarN/AMARPAN/ANMEA20001 x NMEA2000 port (DeviceNet microC)SeaTalkngRequires A06045 DeviceNet female (F) adapter cable - 400mmWi-FiWiFi - 802.11 b / g / nCartographyRaymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.Tides & CurrentsRequires LightHouse LNC2, Navionics or *C-MAPSonar MappingRaymarine RealBathy and Navionics SonarChart LiceWaypoint / Routes / Tracks5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk ptsExternal Memory1 x microSD slotsDimensions287 x 161 x 62mm What's in the Box: class="wtul"> Element display Surface mount gasket Suncover Trunnion knobs x2 Documentation pack Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 lockingnut) Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead). Lighthouse NC3 microSD
