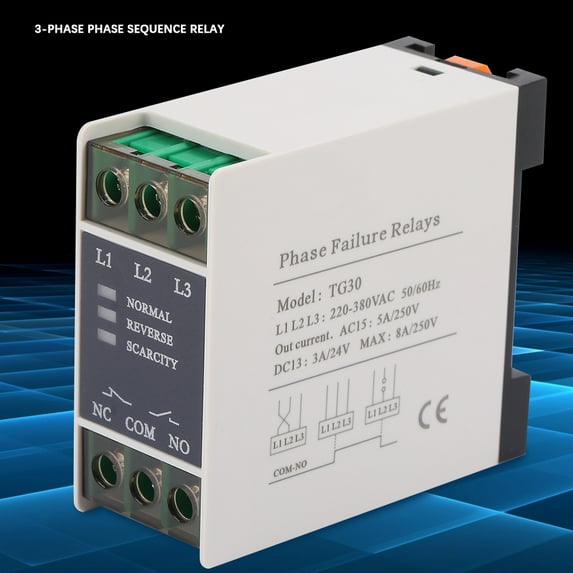

3-Phase Phase Relay Phase Loss Rated Current 5A Phase Failure Relay Phase Reversal Delay Electricity Control Circuit
(No ratings yet)
Key item features
3-Phase Phase Relay Phase Loss Protection Rated Current 5A Phase Failure Relay Phase Reversal Protection Delay Protection Electricity Control Circuit
Specs
- Amps5 Amps
- Input voltage220 V
- BrandFyydes
- FeaturesIlluminated
- Assembled product weight1 lbs
- Has written warrantyNo
Current price is USDNow $16.57
You save $2.40
was $18.97$18.97
You save$2.40
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives between Apr 16 - Apr 21
|Sold and shipped by Siuruida Store
3.659090909090909 stars out of 5, based on 88 seller reviews(3.7)88 seller reviews
Free 30-day returns
Similar items you might like
Based on what customers bought
2 Pieces Single-Phase Solid State Relay Module SSR-40DA 3-32VDC Output 24-380VAC $14.91
$1491current price $14.912 Pieces Single-Phase Solid State Relay Module SSR-40DA 3-32VDC Output 24-380VAC
DC 6-30V LED Digital Time Delay Relay Module Programmable Relay Control Switch Timing Trigger Cycle with Case $9.71
$971current price $9.71DC 6-30V LED Digital Time Delay Relay Module Programmable Relay Control Switch Timing Trigger Cycle with Case
12V DC Delay Relay Delay Turn on / Delay Turn Off Switch Module with Timer $6.83
$683current price $6.8312V DC Delay Relay Delay Turn on / Delay Turn Off Switch Module with Timer
Advanced 12V Relay Timer Adjustable Delay Turn On/Turn Off Module for AC/DC $7.90
$790current price $7.90Advanced 12V Relay Timer Adjustable Delay Turn On/Turn Off Module for AC/DC
15 out of 5 Stars. 1 reviewsMosiee Dc12V Adjustable Infinite Cycle Loop Delay Timer Time Relay Switch On Off Module $10.29
$1029current price $10.29Mosiee Dc12V Adjustable Infinite Cycle Loop Delay Timer Time Relay Switch On Off Module
ASY-3D AC 220V Power on Delay Timer Time Relay 1-999S/M 8 Pins 0-999S $16.26
2 optionsAvailable in additional 2 options$1626current price $16.26ASY-3D AC 220V Power on Delay Timer Time Relay 1-999S/M 8 Pins 0-999S
Relay 4-Channel DC 12V 30A Relay Module Control Board Optocoupler Isolation High/Low Trigger $13.37
$1337current price $13.37Relay 4-Channel DC 12V 30A Relay Module Control Board Optocoupler Isolation High/Low Trigger
Motor Reverse Polarity Delay Relay Timer, Module, DC 5/6/9/12V for Home Power Supply $8.54
$854current price $8.54Motor Reverse Polarity Delay Relay Timer, Module, DC 5/6/9/12V for Home Power Supply
DC 12V Adjustable Timer Delay Turn OFF Module Timing Relay Time Switch 1~10sec $9.28
$928current price $9.28DC 12V Adjustable Timer Delay Turn OFF Module Timing Relay Time Switch 1~10sec
DC 12V 1 Channel Relay Module FRM01 Multifunction Relay Loop Delay Timer Switch Self-Locking Timing Board,1 * FRM01 12V multi-function relay control module $8.50
$850current price $8.50DC 12V 1 Channel Relay Module FRM01 Multifunction Relay Loop Delay Timer Switch Self-Locking Timing Board,1 * FRM01 12V multi-function relay control module
Aluminum Heat Sink Ssr Dissipation For Single Phase Solid State Relay 10A-40A $10.63
$1063current price $10.63Aluminum Heat Sink Ssr Dissipation For Single Phase Solid State Relay 10A-40A
Programmable Digital Switch Relay Control Time Controller Delay Relay Cycle Timing On/ DC 24V $9.51
$951current price $9.51Programmable Digital Switch Relay Control Time Controller Delay Relay Cycle Timing On/ DC 24V
Clupup SXB1-380S phase failure phase sequences protector power supply monitoring relay $11.50
2 optionsAvailable in additional 2 options$1150current price $11.50Clupup SXB1-380S phase failure phase sequences protector power supply monitoring relay
DC6~80V voltage monitoring relay, time delay relay, load discharge controller $16.50
$1650current price $16.50DC6~80V voltage monitoring relay, time delay relay, load discharge controller
Dc 12V Normally Open Time Delay Relay 250V Ac Turn On/Turn Off Switch Module $8.23
$823current price $8.23Dc 12V Normally Open Time Delay Relay 250V Ac Turn On/Turn Off Switch Module
2PCS 1-480Min Timer Adjustable Disconnect Delay Controller AC 110V 220V Power-on OFF Relay Switch Voltage Output $10.92
$1092current price $10.922PCS 1-480Min Timer Adjustable Disconnect Delay Controller AC 110V 220V Power-on OFF Relay Switch Voltage Output
12V 0-10A DC Current Detection Module Sensing Detecting Delay Relay Control $12.37
$1237current price $12.3712V 0-10A DC Current Detection Module Sensing Detecting Delay Relay Control
Yammee Circuit Relays Module Timer Delay Relays 6-30V Timer Relays Controller Module $10.71
$1071current price $10.71Yammee Circuit Relays Module Timer Delay Relays 6-30V Timer Relays Controller Module
12V for DC Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module Tri $9.95
$995current price $9.9512V for DC Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module Tri
2Pcs DC12-24V Dual MOS Digital Time Delay Relay Trigger Cycle Timer Delay Switch Circuit Board Timing Control Module $8.75
$875current price $8.752Pcs DC12-24V Dual MOS Digital Time Delay Relay Trigger Cycle Timer Delay Switch Circuit Board Timing Control Module
About this item
Product details
3-Phase Phase Relay Phase Loss Rated current 5A Phase Failure Relay Phase Reversal Delay Electricity Control Circuit
Specification:
The Phase Relay is a new high-tech product that is applied to large-scale digital integrated circuits and transformerless designs. Highly versatile 3-phase 220V~380V , ultra-small size, very beautiful appearance. It detect the waveform and phase of the power supply by IC to judge whether the power supply is abnormal. In the reverse phase anti-phase, three-phase voltage imbalance, phase loss and short-circuit when the inductive load such as motor is running, it can quickly judge and output the relay , and its function is not affected by the circuit or load current, current, unbalanced current and load characteristics, achieving -term of full performance and full climate to ensure normal and stable of the motor. It can be to provide relay for various three-phase motors and other three-phase equipment such as refrigeration compressor, , fan, air compressor, elevator, injection molding machine.
Characteristics of :
1. Phase loss : It means that any phase occurs phase loss when the protected circuit is in running or stopping status. In this case, the red indicator light will be lighted and be priority.
2. Phase reversal : It is a acting immediately, which L1, L2, and L3 three phase against wrong connection . In this case, the yellow indicator light will be lighted.
3. Voltage imbalance : While a of voltage imbalance rate > 50%, the imbalance of three phase voltage will affect the running of the equipment. In this case that there is a phase losing, the red indicator light will be lighted and be priority.
4. Delay : When the fault happens, the monitor will delay 1~3 seconds to act and release.
Characteristics of working:
1. If the connection of L1, L2 and L3 phases are right, the green light of the relay illuminates and the relay closes. If they are wrong, the yellow light of the relay illuminates. Exchanging any two of them, the relay will accept the phase and begin to work normally.
In this case that there occurs yellow light illuminated and relay unclosed after the protected equipment works normally, it should be a wrong connection of external circuit. The relay has a function of against wrong connection.
2. While any of these L1, L2 and L3 phases is phase loss, the red light is lighted with the unlighted green light and the released relay. While the voltage come back to normal, it will recover immediately with lighted green light and closed relay.
3. L1, L2 and L3 connect with three phase AC. NO, COM are normally open contact point and NC, COM are normally closed contact point. Use to connect terminal directly. Specification: Model: TG30 Rated voltage: 220-380VAC Rated current: 5A Power consumption: Less than or equal to 2W Insulation voltage: 40000VCC/m Mounting method: 35mm TH type rail or M2-M4 screws Package weight: Approx. 98g/3.4oz Package list: 1 x Phase Relay
Specification:
The Phase Relay is a new high-tech product that is applied to large-scale digital integrated circuits and transformerless designs. Highly versatile 3-phase 220V~380V , ultra-small size, very beautiful appearance. It detect the waveform and phase of the power supply by IC to judge whether the power supply is abnormal. In the reverse phase anti-phase, three-phase voltage imbalance, phase loss and short-circuit when the inductive load such as motor is running, it can quickly judge and output the relay , and its function is not affected by the circuit or load current, current, unbalanced current and load characteristics, achieving -term of full performance and full climate to ensure normal and stable of the motor. It can be to provide relay for various three-phase motors and other three-phase equipment such as refrigeration compressor, , fan, air compressor, elevator, injection molding machine.
Characteristics of :
1. Phase loss : It means that any phase occurs phase loss when the protected circuit is in running or stopping status. In this case, the red indicator light will be lighted and be priority.
2. Phase reversal : It is a acting immediately, which L1, L2, and L3 three phase against wrong connection . In this case, the yellow indicator light will be lighted.
3. Voltage imbalance : While a of voltage imbalance rate > 50%, the imbalance of three phase voltage will affect the running of the equipment. In this case that there is a phase losing, the red indicator light will be lighted and be priority.
4. Delay : When the fault happens, the monitor will delay 1~3 seconds to act and release.
Characteristics of working:
1. If the connection of L1, L2 and L3 phases are right, the green light of the relay illuminates and the relay closes. If they are wrong, the yellow light of the relay illuminates. Exchanging any two of them, the relay will accept the phase and begin to work normally.
In this case that there occurs yellow light illuminated and relay unclosed after the protected equipment works normally, it should be a wrong connection of external circuit. The relay has a function of against wrong connection.
2. While any of these L1, L2 and L3 phases is phase loss, the red light is lighted with the unlighted green light and the released relay. While the voltage come back to normal, it will recover immediately with lighted green light and closed relay.
3. L1, L2 and L3 connect with three phase AC. NO, COM are normally open contact point and NC, COM are normally closed contact point. Use to connect terminal directly. Specification: Model: TG30 Rated voltage: 220-380VAC Rated current: 5A Power consumption: Less than or equal to 2W Insulation voltage: 40000VCC/m Mounting method: 35mm TH type rail or M2-M4 screws Package weight: Approx. 98g/3.4oz Package list: 1 x Phase Relay
3-Phase Phase Relay Phase Loss Protection Rated Current 5A Phase Failure Relay Phase Reversal Protection Delay Protection Electricity Control Circuit
