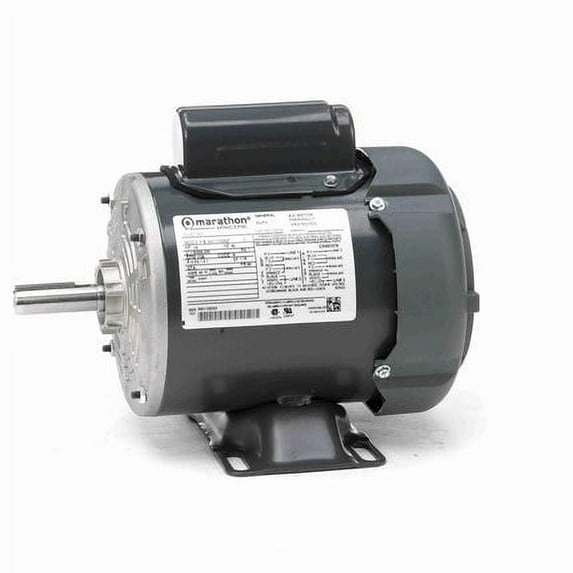

Marathon Motors MG314 G314 6-1/2 Diameter General Purpose Motor

Specifications:
Amps: 4.2/2.1-2.1
Bearings: Ball
Duty Cycle: Continuous
Efficiency: 0.64
Enclosure Material: Steel
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Frame: 56
HP: 1/4
Hz: 60
Insulation Class: B
Manufacturer Model #: 056C17F2052
Maximum Ambient Temperature: 40 C
Motor Diameter: 6-1/2
Motor Shell Length: 5.25
Mounting Orientation: Horizontal
Mounting: Base
Number of Speeds: 1
Overall Length: 10.22
Phase: 1
Product Type: Capacitor Start
Rotation: Reversible
RPM: 1725
Service Factor: 1.15
Shaft Diameter: 5/8
Shaft Length: 1.97
Thermal Protection: Manual
Volts: 115
Volts: 208
Volts: 230
Ship Weight: 20 lbs.
