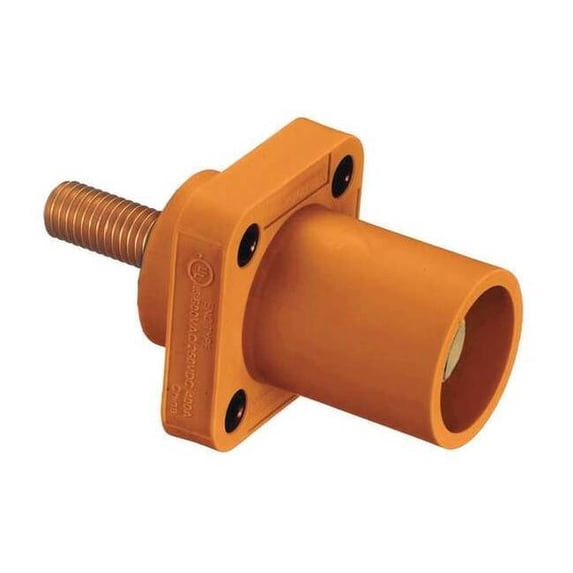

Hubbell Wiring Device-Kellems Receptacle, 4-4/0, Male, Org, Stud, Taper HBLMRSO

The HUBBELL Series 16 Male Receptacle is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This receptacle features a straight, taper nose design with threaded stud terminals and accommodates wire sizes from #4 AWG to 4/0 AWG. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for use in indoor dry locations; additional protection may be required for other environments.Key Features of the HUBBELL Series 16 Male Receptacle: Amperage Rating: Rated for up to 400 A (300/400A AC/DC)Voltage Rating: Supports up to 600V AC or 250V DCCable Range: Accepts wire sizes from #4 AWG to 4/0 AWGTerminal Connection Type: Threaded stud connection with screw terminalsMaterial Construction: Brass conductor/contact; thermoplastic elastomer housingNEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirementsStandards Compliance: Listed under ANSI/NFPA 70, NEC, UL/cUL standards including UL1691 compatibilityMounting Style: Through hole mounting with included hardware; flange shape is squareDevice Orientation & Gender: Straight orientation; male configuration; single pole style (taper nose)
