Techtongda Hardback Edition 30MPa 45000psi PCP High Pressure Air Compressor Electric Air Pump

Parameter:
Name: High pressure pneumatic pump
Model:Hardback edition
Voltage: 110V
Power: 1.80KW
Working pressure: 300BAR/ 30MPA/ 4500PSI
Work flow: 50L/min
Material: Aluminum

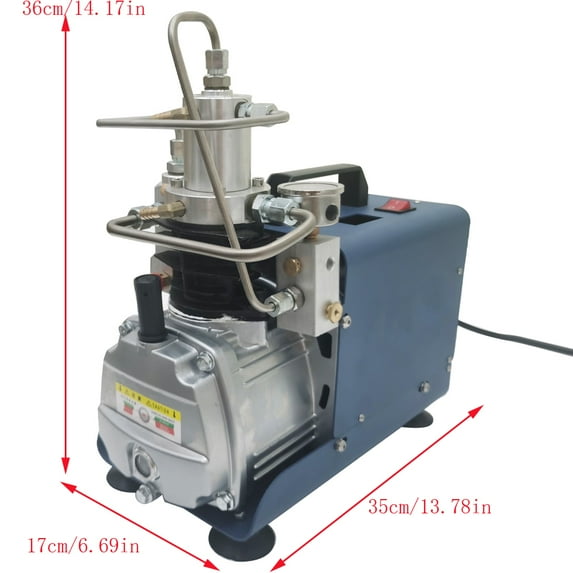

Product size: 360*180*370 mm / 14.17*7.09*14.56inch
Package size: 49*50*32CM
Inflating speed: 2800r/min
Noise: MAX 78DB
Weight: 22.0Kg
Filling Time: 10mins per 1L tank Valve Quantity
Cooling System: water cooling
Cooling System: Water Cooling
Compression Stage : Two Stage
Lubrication Mode: Splash Type
Material of Cover: Cast Aluminum
Test Inflating Result : It takes 5 mins to fill full 0.45L tank to 4500PSI
Test Inflating Result : It takes 12 mins to fill full 1L tank to 300 BAR

Operation instruction:
1. Take out the product; install the hose at the air outlet.(Note: gasket is needed, or air leakage might exist.)
2. Connect 2 cold water pipes and connect them to the water pump. (Note: the lower pipe connected to the water pump is water inlet; sinking pump is used in this product. The water pump should be immersed in water for using.)
3. Install the pressure relief valve screw; pressure relief valve screw is installed at the pressure relief hole under the hose.The blow-down valve is installed at thedrain outlet of the first air chamber block.
4. Immerse the water pump in water and switch on the power.
5. Connect the container need to be inflated, make sure the connection is correct.
6. Screw up the screws of the blow-down valve and pressure relief valve.
7. Switch on the power ant the machine operates. Note: when the machine is operating, the water must operate correspondingly, or the product might be damaged due to overheated, personal harm may even occur.
8. After the inflation is completed, screw of the pressure relief valve should be firstly loosen, then the power is to be switched off, by doing so, high pressureair backlash caused due to sudden failure of power supply would be avoided, which could lengthen lifetime of the product, as well as discharge high pressure air in the machine.

Item included(022268):
Techtongda 110V High Pressure Electric Air Pump 30Mpa
