Hero image 0 of Aegis Battery 24V 10Ah Lithium Battery - NMC Deep Cycle Lithium-ion, 0 of 4

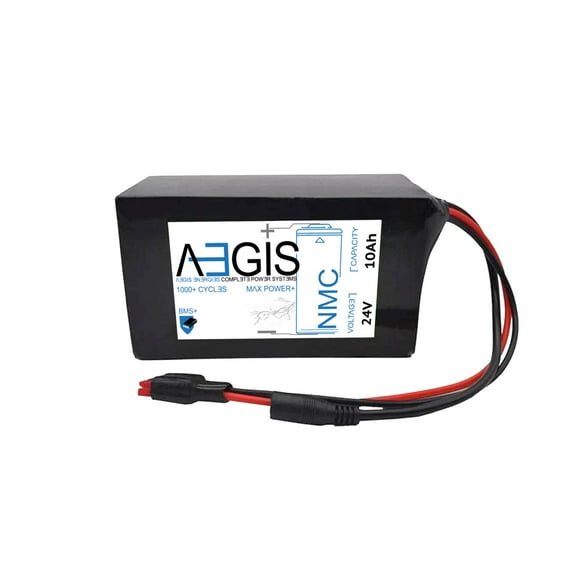

Aegis Battery 24V 10Ah Lithium Battery - NMC Deep Cycle Lithium-ion

(No ratings yet)

Key item features

Aegis Battery NMC Advantage:
Advanced NMC (Nickel Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
All-Aspect Solution with best overall balance of features with high specific energy (150-220Wh/kg)
Ideally Suited for EV and High Energy Power Consumption Applications
Excellent Lifespan (1000-2000 Cycles Average)
US Warranty & US Support

Specifications:
Model: ABL-01230P
Battery Case: PVC Pack
Battery Chemistry: NMC (Nickel Manganese Cobalt) Lithium
Cell Type/Assembly Method: 18650 Cylindrical cells / welded
Voltage (V): 24V
Capacity (Ah): 10Ah
Energy Stored (Wh): 240 Watt-Hours
Weight: 3.3 lbs. (1.5 kg)
Dimension (L x W x H): 5.8 in. x 3.2 in. x 2.8 in. (+/-0.1in)
Discharge Connector: Anderson PP45
Charge Connector: DB Barrel Plug (Female)
Cycle Life: 1000+ cycles
Normal Charged Voltage: 29.4V
Normal Charge Current: 3.0 Amps
Nominal Continuous Discharge Current: 5.0 Amps
Maximum Continuous Discharge Current: 10.0 Amps
Maximum Peak Discharge Current: 20.0 Amps
Charge Temperature: 0°C to 45°C
Discharge Temperature: -20°C to 60°C
Operating Humidity: 60±25%R.H
Storage Humidity: 60±25%R.H
Automatic Battery Protection Module/System: Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.

Compatible AC-to-DC Charger Specifications:
Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 29.6VDC
Current: 3A
Compatible Charger Model Number: CRG-02403P

Intelligent Technology:
Advanced Lithium Battery Management System (BMS) Board
Every Battery has bespoke board matching its performance parameters
Comprehensively balances charging and discharging
Internal balancing circuitry and charger circuitry inside BMS
Comprehensive protections against overcharge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
Dramatically extends service life

Comprehensive Improvement:
Achieve full depth discharge of 100% Label Capacity
“True Lithium Capacity” guarantees capacity of purchase is capacity delivered
Reliable, repeatable full depth cycling without system life cycle degradation
NMC Systems can be fully discharged safely without impact on system performance
Multiple times usable capacity and lifespan of Lead Acid

Specs

Battery post location
Top Post
Brand
Aegis Battery
Vehicle fitment type
Specific
Model
ABL-024010P
Vehicle model
ABL-024010P
Height
2.8 in

Current price is $206.99

Price when purchased online

Free shipping
Free 30-day returns

Allstate Roadside Protection

(Only one option can be selected at a time)

1-Year Standard Roadside plan - $9.88

1-Year Enhanced Roadside plan - $19.88

How do you want your item?

Columbus, 43215

Arrives between Apr 10 - Apr 15

Sold and shipped by Aegis Battery

3.4 stars out of 5, based on 5 seller reviews(3.4)

Report an issue with this seller

Free 30-day returns

About this item

Product details

The Aegis Battery 24V 10Ah Lithium Battery is a state of the art rechargeable lithium battery pack made with advanced high quality 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for ebikes, lighting, RC, RV, mobility, scooters, robots, motors, and devices demanding higher power output. The 24V lithium battery comes with pre-assembled Anderson PP45, DC, or terminal integrated connectors allowing for easy compatibility. Charger may be sold separately. The Aegis battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

Aegis Battery NMC Advantage:
Advanced NMC (Nickel Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
All-Aspect Solution with best overall balance of features with high specific energy (150-220Wh/kg)
Ideally Suited for EV and High Energy Power Consumption Applications
Excellent Lifespan (1000-2000 Cycles Average)
US Warranty & US Support

Specifications:
Model: ABL-01230P
Battery Case: PVC Pack
Battery Chemistry: NMC (Nickel Manganese Cobalt) Lithium
Cell Type/Assembly Method: 18650 Cylindrical cells / welded
Voltage (V): 24V
Capacity (Ah): 10Ah
Energy Stored (Wh): 240 Watt-Hours
Weight: 3.3 lbs. (1.5 kg)
Dimension (L x W x H): 5.8 in. x 3.2 in. x 2.8 in. (+/-0.1in)
Discharge Connector: Anderson PP45
Charge Connector: DB Barrel Plug (Female)
Cycle Life: 1000+ cycles
Normal Charged Voltage: 29.4V
Normal Charge Current: 3.0 Amps
Nominal Continuous Discharge Current: 5.0 Amps
Maximum Continuous Discharge Current: 10.0 Amps
Maximum Peak Discharge Current: 20.0 Amps
Charge Temperature: 0°C to 45°C
Discharge Temperature: -20°C to 60°C
Operating Humidity: 60±25%R.H
Storage Humidity: 60±25%R.H
Automatic Battery Protection Module/System: Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.

Compatible AC-to-DC Charger Specifications:
Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 29.6VDC
Current: 3A
Compatible Charger Model Number: CRG-02403P

Intelligent Technology:
Advanced Lithium Battery Management System (BMS) Board
Every Battery has bespoke board matching its performance parameters
Comprehensively balances charging and discharging
Internal balancing circuitry and charger circuitry inside BMS
Comprehensive protections against overcharge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
Dramatically extends service life

Comprehensive Improvement:
Achieve full depth discharge of 100% Label Capacity
“True Lithium Capacity” guarantees capacity of purchase is capacity delivered
Reliable, repeatable full depth cycling without system life cycle degradation
NMC Systems can be fully discharged safely without impact on system performance
Multiple times usable capacity and lifespan of Lead Acid
