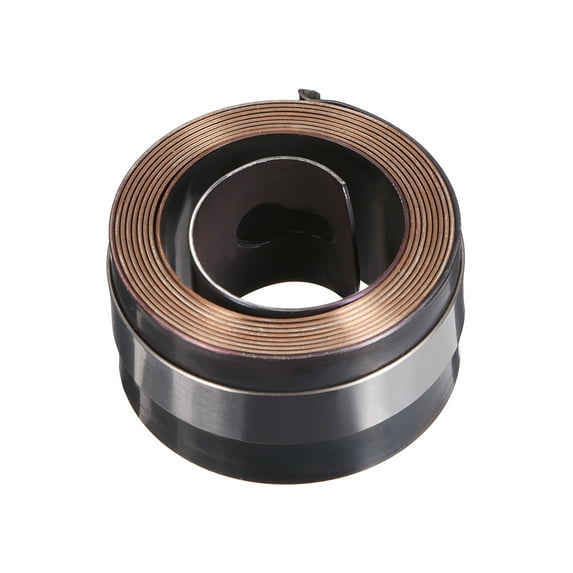

Drill Press Spring Quill Feed Return Coil Spring 1400mm 44x25x0.7mm

Specification:
Material : Spring Steel (60Si2Mn)
Finish : Chemical Blackening
Material Thickness : 0.7mm
Material Width : 25mm
Spring OD : 44mm
Expand Length : 1400mm/55.1inch
Inner Mounting Type : Cylindrical Bore
Outer Mounting Type : Hook

Package Content :
1 x Drill Press Spring

Description:

• The drill press quill return spring is good replacement for many existing quill spring drill presses, this is the chrome housed spring that returns the quill to the top after you have completed drilling.Used to all kinds of vacuum cleaner coil spring, volume tube coil spring, safe belt coil spring and so on.
• Chemical Blackening, the performance of the product form oxide film, isolate the air, prevent rust.
• Pay attention to safe when installing springs. Do not loosen the wire of fixed springs! When installing, install the spring with a fixed wire directly into the spring seat, and the wire will slide out.
