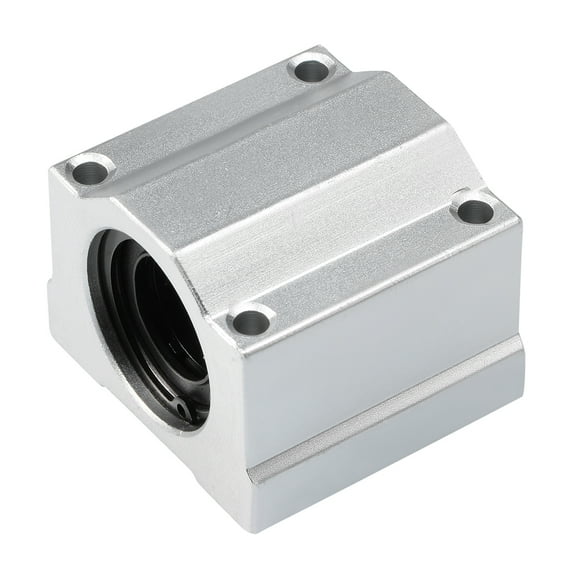

SCS20UU Linear Ball Bearing Slide Block Units, 20mm Bore Dia 1Pcs

1.Uxcell provides SCSUU series Linear Ball Bearing Slide Block Units complementary to Uxcell linear ball bearings.
2.They usually consist of a light-weight, aluminium housing to provide high strength and stiffness.
3.Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
4.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
5.It is great for 3D printer, CNC, and other applications.


Specification:
Unit No.: SCS20UU
Bearing No.: LM20UU
Slide Block Meterial: Aluminium Alloy
Bearing Ball Meterial: Chromium Steel
Cage Meterial: Nylon
Nominal Shaft Diamter (dr): 20mm
Slide Block Size: 54 x 50 x 41mm / 2.13 x 1.97 x 1.61inch (L*W*H)
Mounting Hole Size: M6
Mounting Hole Distance: 40 x 40mm / 1.57 x 1.57inch (B*C)
Static Load Capacity (Cor): 0.863kN
Dynamic Load Capacity (Cr): 1.37kN
Number of Pack: 1 Pcs
