AmScope 2000X LED Lab Trinocular Compound Microscope w 3D Mechanical Stage + 9MP Camera New

(No ratings yet)

Key item features

Eight widefield magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X
Professional 30 degree inclined 360 degree swiveling Siedentopf trinocular head
Large 3-D double layer mechanical stage with coaxial coarse & fine focusing, Abbe condenser and iris diaphragm

Specs

Standard optical microscope type
Compound
Microscope head type
Trinocular
Maximum magnification
2000 x
Minimum magnification
40X
Rec. use
Educational
Features
LED Lights

Current price is $559.49

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

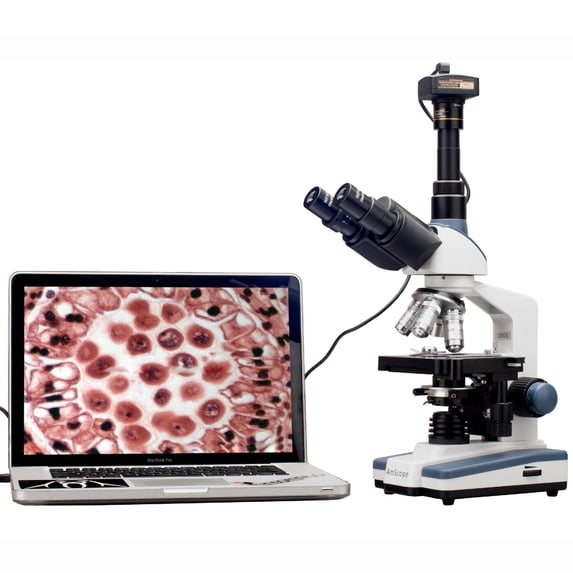

Our new trinocular compound microscope with digital camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf trinocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with retail value $1800.

Features :

30 degree inclined 360 degree swiveling Siedentopf trinocular head

High quality precise optical glass elements

Easy to attach a microscope camera or digital imager

Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Two pairs of widefield eyepieces: WF10X and WF20X

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides

Stage upward moving lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe Condenser with iris diaphragm & filters

Rack and pinion adjustment condenser

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications :

Eyepieces: widefield, WF10X and WF20X

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling trinocular

Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

- Size: 4-5/8" x 5" (118mm x 127mm)

- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Camera Specifications:

Sensor: Aptina

Sensor Type: CMOS

Sensor Size: 5.825x4.369mm

px Size: 1.67

Resolution: 9.0MP

Frame Rate: 11.9@3488x2616, 8@1744x1308, 27@872x654

Sensitivity: 0.31 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Eight widefield magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X
Professional 30 degree inclined 360 degree swiveling Siedentopf trinocular head
Large 3-D double layer mechanical stage with coaxial coarse & fine focusing, Abbe condenser and iris diaphragm
